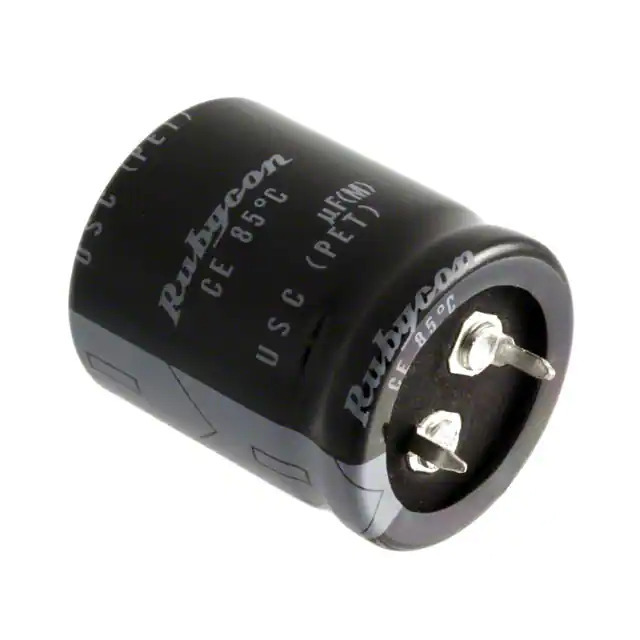

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series USC
Package Bulk
Product Status Active
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.44 A @ 120 Hz
Ripple Current @ High Frequency 2.016 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360672-400USC180MEFCSN25X30
Ultra Librarian 3D Model Ultra Librarian 400USC180MEFCSN25X30 CAD Model

Description

The Rubycon 1360672-400USC180MEFCSN25X30 is a high-quality aluminum electrolytic capacitor with a capacitance of 180 µF and a voltage rating of 400 V.

  • Series: USC
  • Temperature Range: -25°C to 85°C
  • Lifetime: 3000 hours @ 85°C
  • Ripple Current: 1.44 A @ 120 Hz
  • Ripple Current: 2.016 A @ 10 kHz
  • Package: Radial, Can - Snap-In
  • Lead Spacing: 0.394"
  • Dimensions: 0.984" diameter and 1.260" height
