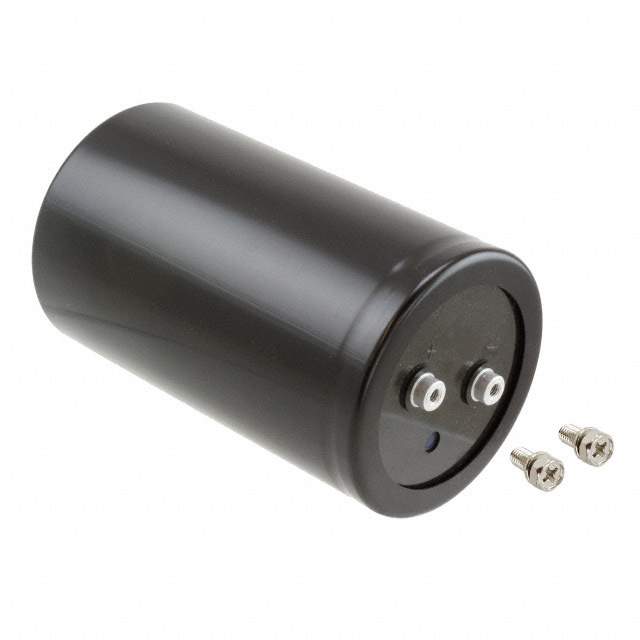

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series LSU
Packaging Bulk
Capacitance 6800μF
Tolerance ±20%
Voltage Rating DC 400V
Lifetime @ Temp. 5000 Hrs @ 85°C
Operating Temperature Range -25°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 19.2A @ 120Hz
Ripple Current - High Frequency 26.88A @ 10kHz
Lead Spacing 1.236" (31.40mm)
Dimension 3.032" Dia (77.00mm)
Height - Seated (Maximum) 6.063" (154.00mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 796186-400LSU6800MEFC77X151
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 400LSU6800MEFC77X151 CAD Model

Description

The Rubycon LSU series capacitor is a bulk-packaged, polarized capacitor from Rubycon.

  • Capacitance: 6800μF
  • Voltage Rating: 400V DC
  • Lead Spacing: 1.236" (31.40mm)
  • Ripple Current: 19.2A @ 120Hz (low frequency), 26.88A @ 10kHz (high frequency)
  • ESR: Not Specified
  • Lifetime: 5000 hours @ 85°C
  • Package: Radial, Can - Screw Terminals
  • Mounting: Chassis Mountable
  • Application: General
  • Diameter: 3.032" (77.00mm)
  • Height: 6.063" (154.00mm)
  • Series: LSU
