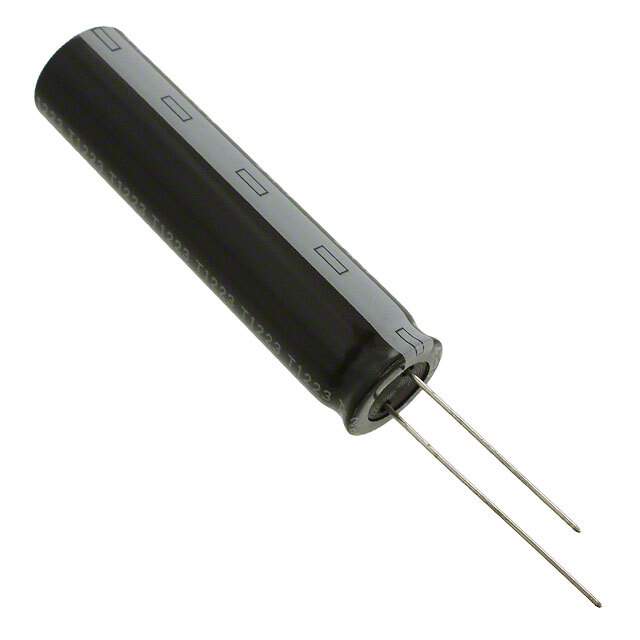

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.07 A @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338231-400BXW180MEFR16X50
Ultra Librarian 3D Model Ultra Librarian 400BXW180MEFR16X50 CAD Model

Description

This aluminum electrolytic capacitor from Rubycon has a capacitance of 180 µF and a voltage rating of 400 V.

  • Capacitance: 180 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Standard Package: 200
  • Height - Seated (Max): 2.047" (52.00mm)
  • Size / Dimension: 0.630" Dia (16.00mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Polarization: Polar
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 12000 Hrs @ 105°C
  • ROHS3 Compliant: Yes
