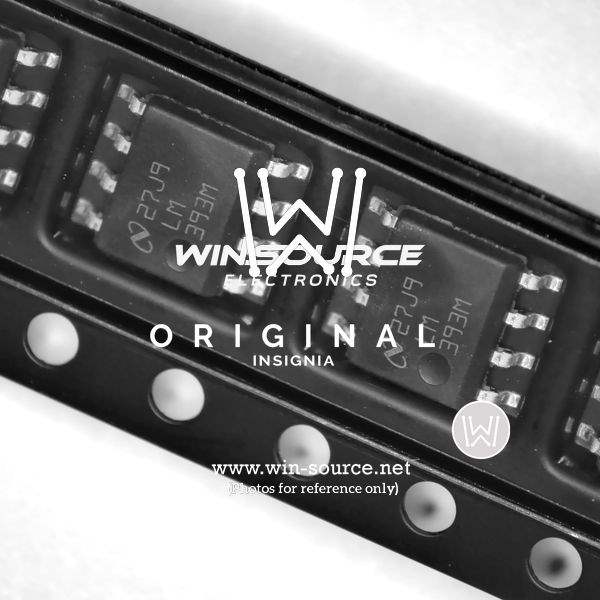

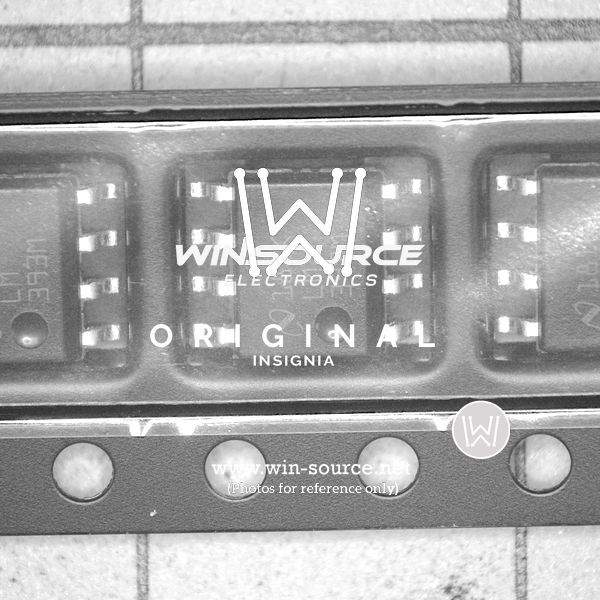

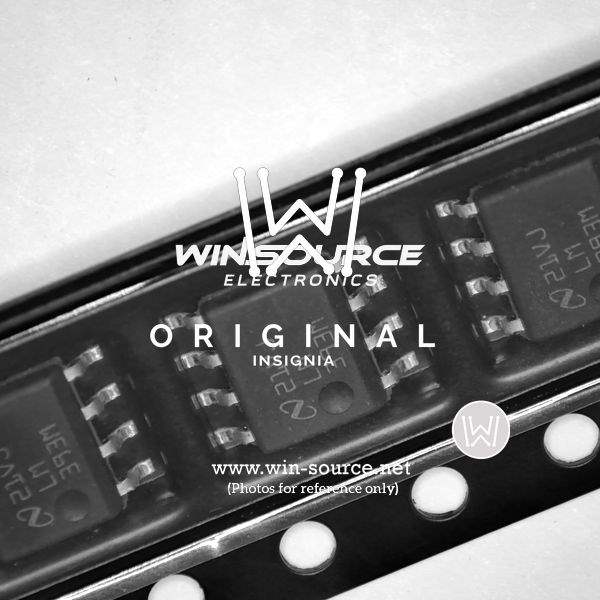

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Standard Package 1
Category Integrated Circuits(ICs)
Family Linear - Comparators
Series Now
Packaging Reel
Type General Purpose
Number of Elements 2
Output Type CMOS MOS Open-Collector TTL
Voltage - Supply Single/Dual (±) 2 V ~ 36 V ±1 V ~ 18 V
Voltage - Input Offset (Max) 7mV @ 5V
Current - Input Bias (Max) 0.25µA @ 5V
Current - Output (Typ) 16mA @ 5V
Current - Quiescent (Max) 2.5mA
Operating Temperature Range 0°C ~ 70°C
Package 8-SOIC (0.154" 3.90mm Width)
Mounting Style SMD/SMT
Manufacturer Device Package 8-SO
Catalog Comparators - 2 elements
Win Source Part Number 093492-LM393MX
Family Name LM393
Introduction Date November 01, 2001
ECCN EAR99
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM393MX CAD Model

Description

The LM393MX is a dual voltage comparator IC manufactured by Rohm Semiconductor.

  • Function: Compares two input voltages and provides a digital output signal
  • Supply Voltage Range: 2V to 36V
  • Package: 8-SOIC
  • Input Bias Current: 0.25μA
  • Quiescent Current: 2.5mA
