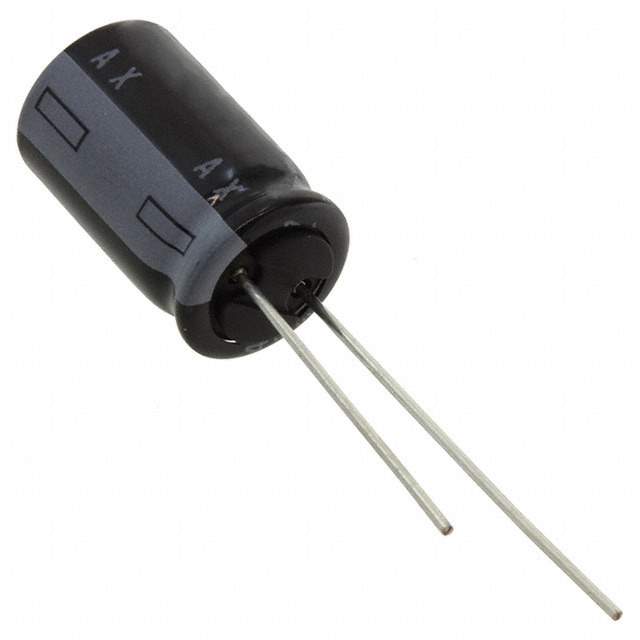

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series AX
Package Bulk
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 400AX15M10X16-ND,400AX15M10X16,400AX15MEFC10X16-ND,400AX15MEFC10X16INACTIVE,1189-2275
Standard Package 1,000
Win Source Part Number 971469-400AX15MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 400AX15MEFC10X16 CAD Model

Description

The Rubycon AX Series Capacitor is a high-quality aluminum electrolytic capacitor that is designed for general purpose use. It has a capacitance of 15 µF and is rated for 400 V.

  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • Polarization: polarized
  • Mounting Type: through-hole
  • Package/Case: radial, can
  • Diameter: 0.394" (10.00mm)
  • Height: 0.709" (18.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • ESR (Equivalent Series Resistance): -
  • Applications: power supplies, lighting ballasts, and audio equipment.
