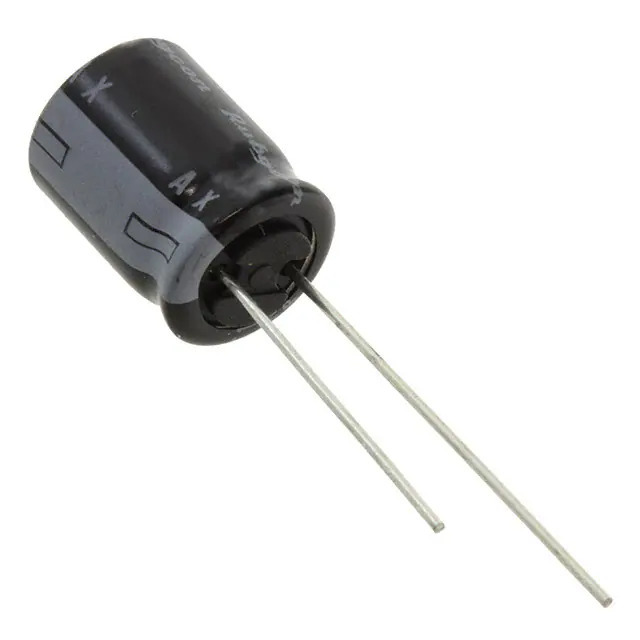

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series AX
Package Bulk
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.571" (14.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358134-400AX10MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 400AX10MEFC10X12.5 CAD Model

Description

The Rubycon AX series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 10 µF
  • Voltage - Rated: 400 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not Rated
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Mounting Type: Through Hole
  • Height - Seated (Max): 0.571" (14.50mm)
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Manufacturer: Rubycon
  • Packaging: Bulk
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Polarization: Polar
