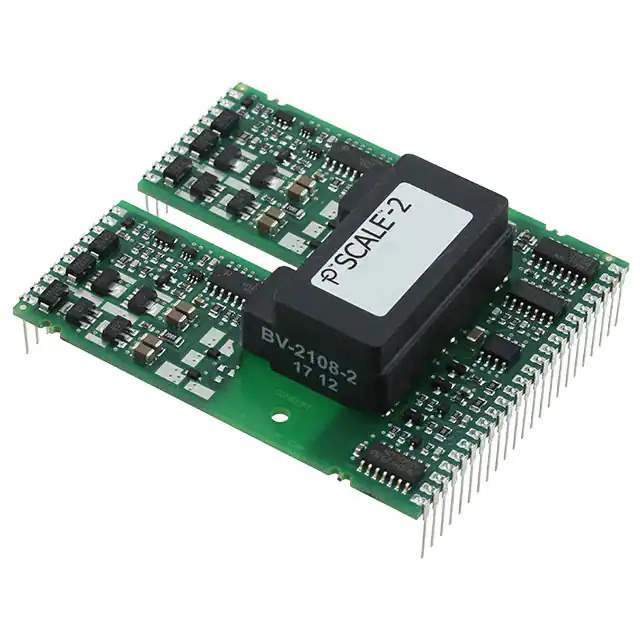

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Tray
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type IGBT
Voltage - Supply 14V ~ 16V
Current - Peak Output (Source, Sink) 30A, 30A
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 2SD300
Standard Package 12 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 906408-2SD300C17A2
Ultra Librarian 3D Model Ultra Librarian 2SD300C17A2 CAD Model

Description

The 906408-2SD300C17A2 is a half-bridge gate driver integrated circuit designed for power management applications.

  • Series: SCALE™-2
  • Manufacturer: Power Integrations
  • Package: Module
  • Supply Voltage Range: 14V to 16V
  • Peak Output Current (Source): 30A
  • Peak Output Current (Sink): 30A
  • Rise and Fall Time: Not specified
  • Programmability: Not verified
  • Operating Temperature Range: -40°C to 85°C
  • Applications: Industrial and automotive sectors
