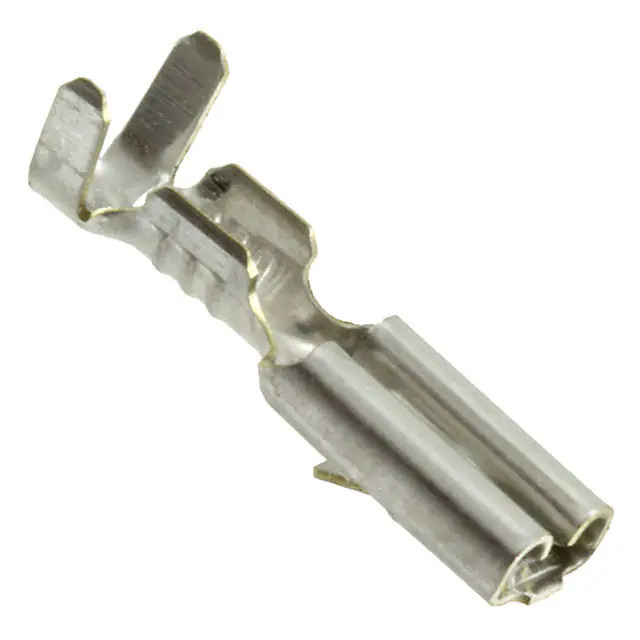

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.550" (13.97mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.120" (2.03mm ~ 3.05mm)
Base Product Number 63241
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364833-63241-3
Ultra Librarian 3D Model Ultra Librarian 63241-3 CAD Model

Description

The Fastin-Faston Quick Disconnect Connector is a reliable and efficient solution for quick and easy connections from TE Connectivity AMP Connectors.

  • Application: Connectors, Interconnects, and Terminals
  • Material: Brass
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Wire Gauge: 18-22 AWG
  • Terminal Type: Standard
  • Gender: Female
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Overall Length: 0.550" (13.97mm)
  • Package: Tape & Reel
