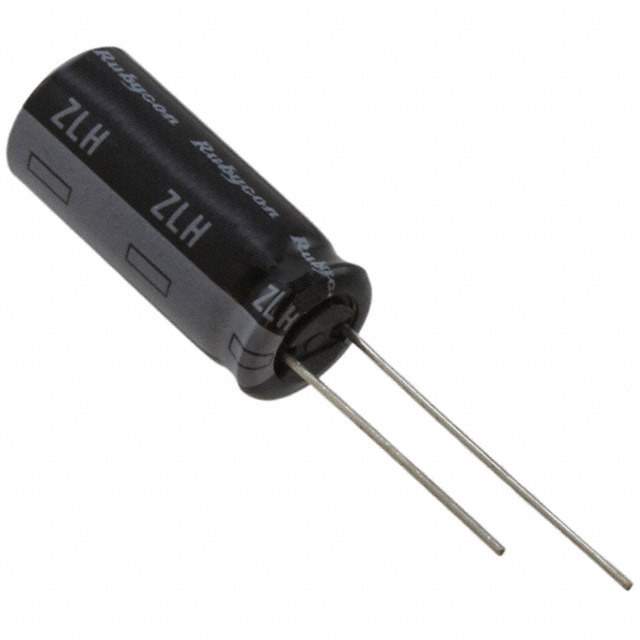

Same model may have multiple batches, images only for reference.

35ZLH680MEFC10X23

Name: 35ZLH680MEFC10X23
Brand: Rubycon
SKU: 1307286
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35ZLH680MEFC10X23
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.238 A @ 120 Hz
Ripple Current @ High Frequency	2.25 A @ 100 kHz
Impedance	18 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Other Names	35ZLH680MEFC10X23,1189-1749
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307286-35ZLH680MEFC10X23
Ultra Librarian 3D Model	Ultra Librarian 35ZLH680MEFC10X23 CAD Model

Description

The 35ZLH680MEFC10X23 is an aluminum electrolytic capacitor from Rubycon that belongs to the Capacitors>Aluminum Electrolytic Capacitors category.

Capacitance: 680 µF
Voltage Rating: 35 V
Ripple Current @ Low Frequency: 1.238 A @ 120 Hz
Ripple Current @ High Frequency: 2.25 A @ 100 kHz
Package/Case: Radial, can
Packaging: Bulk
Standard Package: 1,000
Polarized: Yes
Operating Temperature Range: -40°C ~ 105°C
