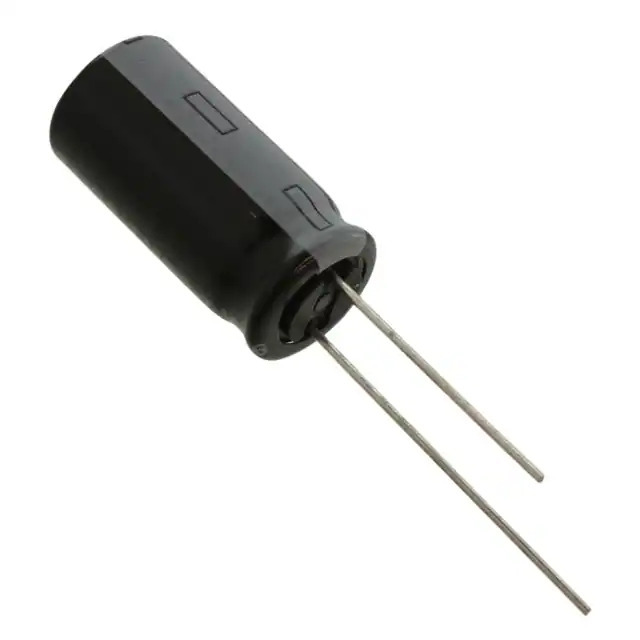

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Tape & Box (TB)
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.078 A @ 120 Hz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358192-35ZLH560MEFCT810X20
Ultra Librarian 3D Model Ultra Librarian 35ZLH560MEFCT810X20 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a reliable and high-quality component suitable for a wide range of applications.

  • Capacitance: 560 µF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 1.078 A @ 120 Hz
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Series: ZLH
