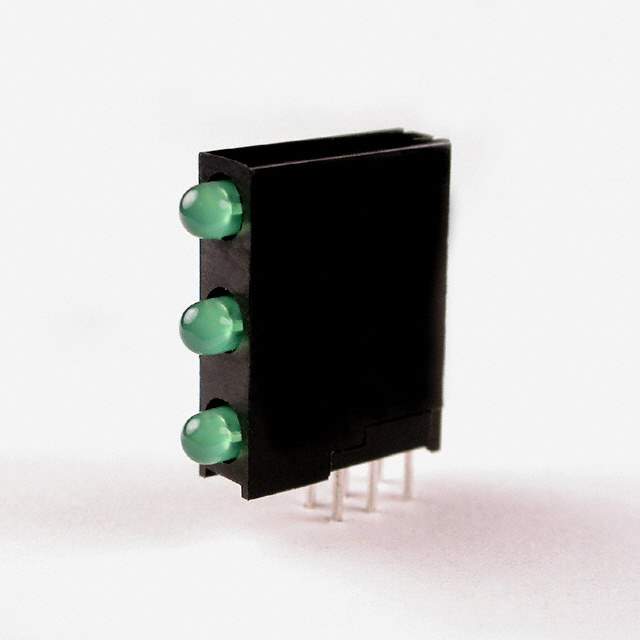

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Kingbright
Package Tube
Color Green (x 3)
Wavelength - Peak 568nm
Configuration 3 High
Current 20mA
Millicandela Rating 22.5mcd
Viewing Angle 40°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number WP934
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1289,WP934SA3GD
Standard Package 125
Win Source Part Number 1025107-WP934SA/3GD
Ultra Librarian 3D Model Ultra Librarian WP934SA/3GD CAD Model

Description

The Kingbright WP934SA/3GD is a high-quality LED component that is widely used in the manufacturing of electronic devices.

  • Category: Optoelectronics
  • Series: LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Voltage Rating: 2.2V
  • Millicandela Rating: 22.5mcd
  • LED Type: Diffused, Tinted
  • Viewing Angle: 40 degrees
  • Current Rating: 20mA
  • Wavelength Peak: 568nm
  • RoHS Compliant: Yes
  • ECCN: EAR99
