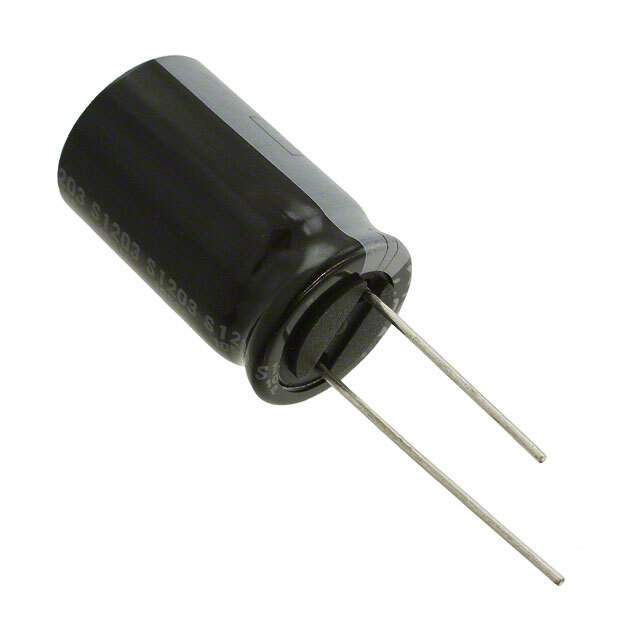

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.344 A @ 120 Hz
Ripple Current @ High Frequency 2.93 A @ 100 kHz
Impedance 21 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1296
Standard Package 600
Win Source Part Number 1150307-35YXJ2200M16X25
Ultra Librarian 3D Model Ultra Librarian 35YXJ2200M16X25 CAD Model

Description

The 1150307-35YXJ2200M16X25 model is an aluminum electrolytic capacitor designed for use in general-purpose electronic applications manufactured by Rubycon.

  • Series: YXJ
  • Mounting Type: Through-Hole
  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 21 mOhms
  • Ripple Current: 2.344 A @ 120 Hz and 2.93 A @ 100 kHz
  • Lifetime: 10000 Hrs @ 105°C
  • Package/Case: Radial, Can
  • Diameter: 0.630" (16.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Temperature Range: -40°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • REACH Unaffected: Yes
