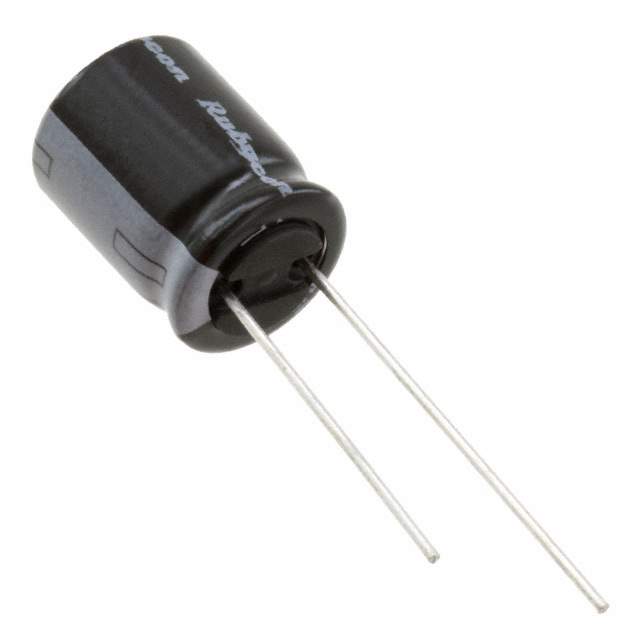

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 406 mA @ 120 Hz
Ripple Current @ High Frequency 580 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1889,35YXF220MEFC10X12.5-ND,35YXF220MEFC10X125
Standard Package 1,000
Win Source Part Number 1113583-35YXF220MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 35YXF220MEFC10X12.5 CAD Model

Description

The Rubycon YXF series is a radial, can type capacitor with a capacitance of 220μF and a voltage rating of 35V DC.

  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 160 mOhms
  • Ripple Current: 406mA @ 120Hz and 580mA @ 100kHz
  • Polarized: Yes
  • Lifespan: 7000 hours @ 105°C
  • Application: Suitable for general purpose applications
  • Manufactured In: Japan
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
