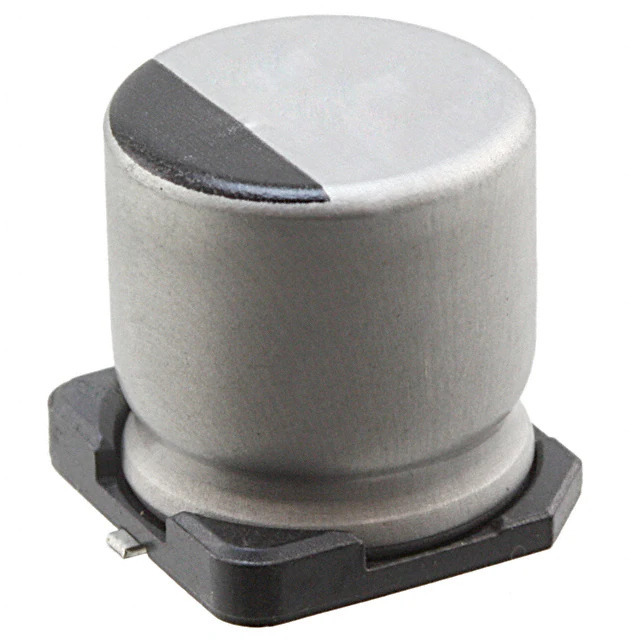

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SGV
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 90 mA @ 120 Hz
Ripple Current @ High Frequency 135 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360234-100SGV22M10X10.5
Ultra Librarian 3D Model Ultra Librarian 100SGV22M10X10.5 CAD Model

Description

The Rubycon SGV series aluminum electrolytic capacitor is a reliable and high-quality component suitable for automotive applications.

  • Capacitance: 22 μF
  • Voltage Rating: 100 V
  • Capacitance Tolerance: ±20%
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size: 0.394 inches (10.00mm) diameter
  • Height: 0.406 inches (10.30mm)
  • Lifetime: 2,000 hours @ 105°C
  • Ripple Current (Low Frequency): 90 mA @ 120 Hz
  • Ripple Current (High Frequency): 135 mA @ 10 kHz
  • Polarization: Polarized
