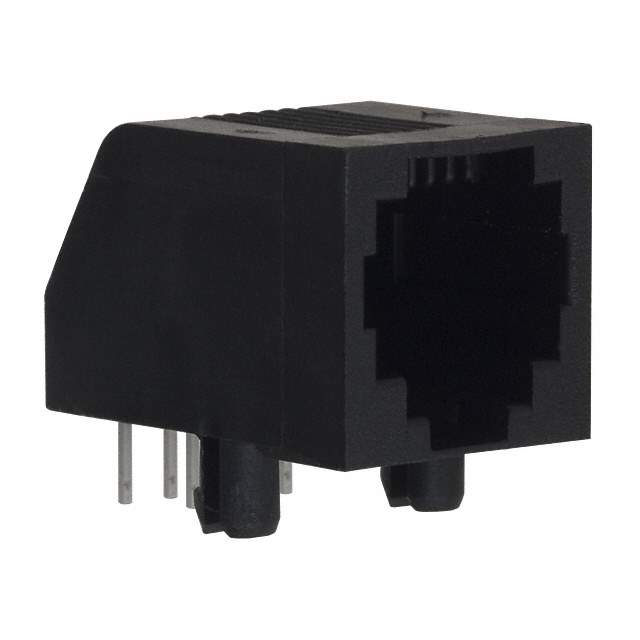

555165-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Part Status Obsolete (End Of Life)
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports 1
Number of Rows 1
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 176
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801639-555165-1
Ultra Librarian 3D Model Ultra Librarian 555165-1 CAD Model

Description

The TE Connectivity AMP Connectors 555165-1 is a through-hole jack connector with 6p6c (RJ11, RJ12, RJ14, RJ25) number of positions/contacts.

  • Number of Positions/Contacts: 6p6c (RJ11, RJ12, RJ14, RJ25)
  • Temperature Range: -40°C to 85°C
  • Rating: Cat3
  • Tab Direction: Down
  • Family: Obsolete (End of Life)
  • Category: Jack Connector
  • Popularity: High
  • Supply and Demand: Sufficient
