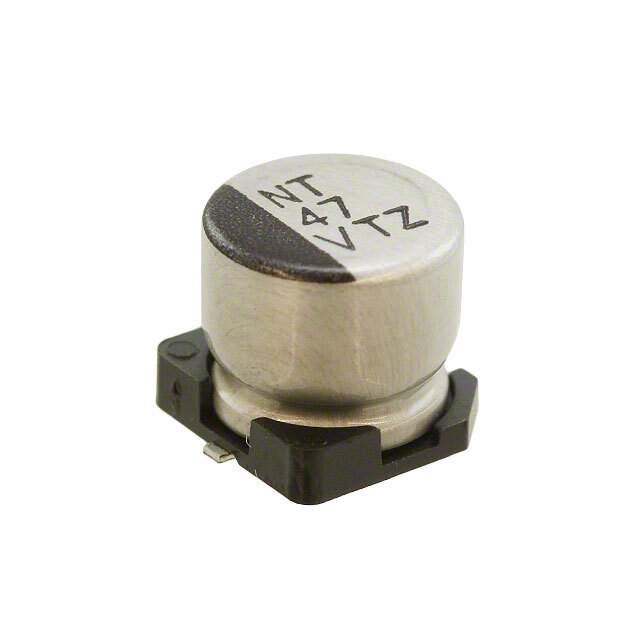

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 80 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 360 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1625-6,1189-1625-1,1189-1625-2,35TZV47M63X61
Standard Package 1,000
Win Source Part Number 1331277-35TZV47M6.3X6.1
Ultra Librarian 3D Model Ultra Librarian 35TZV47M6.3X6.1 CAD Model

Description

The Rubycon 35TZV47M6.3X6.1 is an aluminum electrolytic capacitor that comes in a radial, can - SMD package.

  • Capacitance: 47 microfarads
  • Tolerance: +/-20%
  • Rated Voltage: 35V
  • Ripple Current: 80mA @ 120Hz and 250mA @ 100kHz
  • Application: Automotive
  • Height (seated): 0.240 inches
  • Package Diameter: 0.248 inches
  • Supplied in: Reel
  • Lifetime @ Temperature: 2000 hours @ 105 degrees Celsius
  • Operating Temperature: -55 to 105 degrees Celsius
  • REACH: Not affected
  • ROHS3 Compliant: Yes
  • Fake Product Threat: 85% in open market
