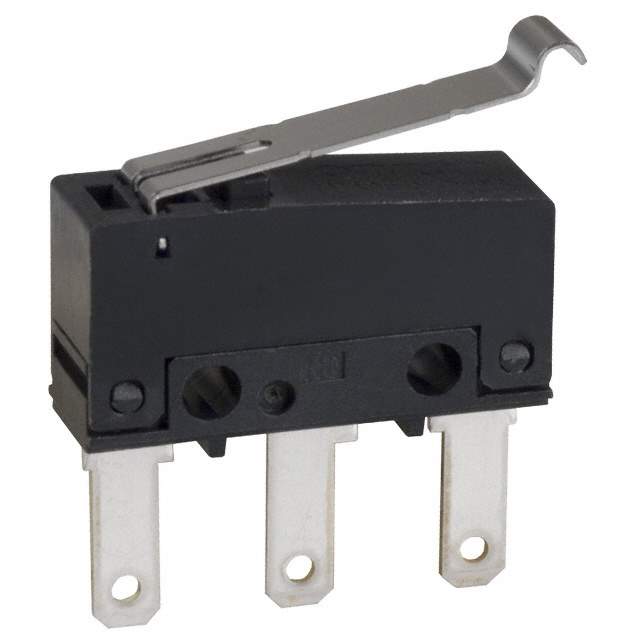

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Lever, Simulated Roller
Mounting Style Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1259061-SS-3GL13PT
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian SS-3GL13PT CAD Model

Description

This Omron Electronics Inc-EMC Div switch with part number 1259061-SS-3GL13PT is a chassis mount type with a quick connect termination style of 0.110" (2.8mm).

  • Ingress Protection: IP40
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: lever with a simulated roller
  • Electrical Life: 100,000 cycles
  • Operating Force: 51gf
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.420" (10.7mm)
  • Component Suitability: suitable for use in industrial applications
