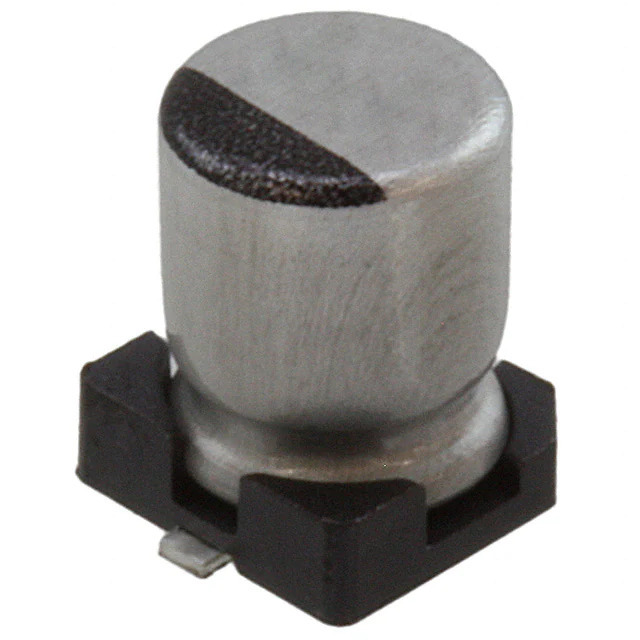

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 27 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360203-35SEV4R7M4X5.5
Ultra Librarian 3D Model Ultra Librarian 35SEV4R7M4X5.5 CAD Model

Description

The Rubycon SEV series aluminum electrolytic capacitor is a reliable component designed for automotive applications.

  • Capacitance: 4.7 µF
  • Voltage: 35 V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 85°C
  • Size: 0.157" diameter (4.00mm)
  • Height: 0.217" (5.50mm)
  • Mounting: Surface Mount
  • Packaging: Tape and Reel
  • AEC-Q200: Yes
  • Ripple Current: Low
