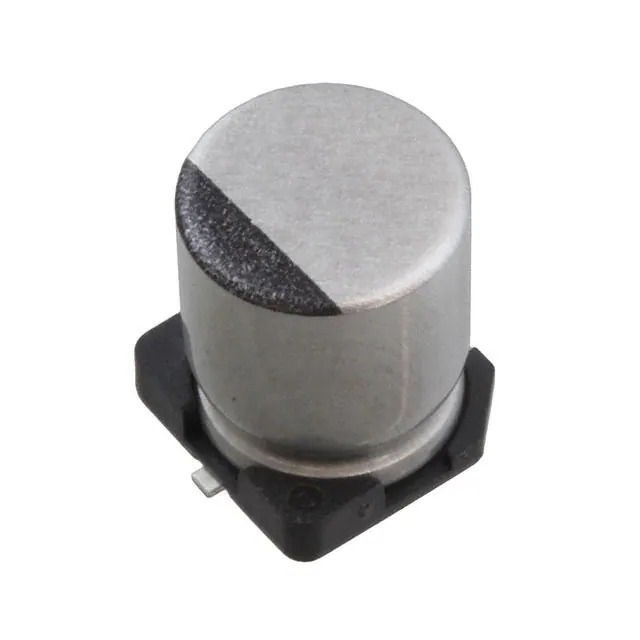

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 157.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360272-35SEV47M6.3X8
Ultra Librarian 3D Model Ultra Librarian 35SEV47M6.3X8 CAD Model

Description

The 35SEV47M6.3X8 is an aluminum electrolytic capacitor from Rubycon's SEV series.

  • Capacitance: 47μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 105mA @ 120Hz
  • Ripple Current (High Frequency): 157.5mA @ 10kHz
  • Application: Automotive
  • Package: Surface Mount Radial, Can
  • Packaging: Tape & Reel
  • Diameter: 0.248" (6.30mm)
  • Height: 0.315" (8.00mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • RoHS: Compliant
  • REACH: Unaffected
  • ECCN: EAR99
