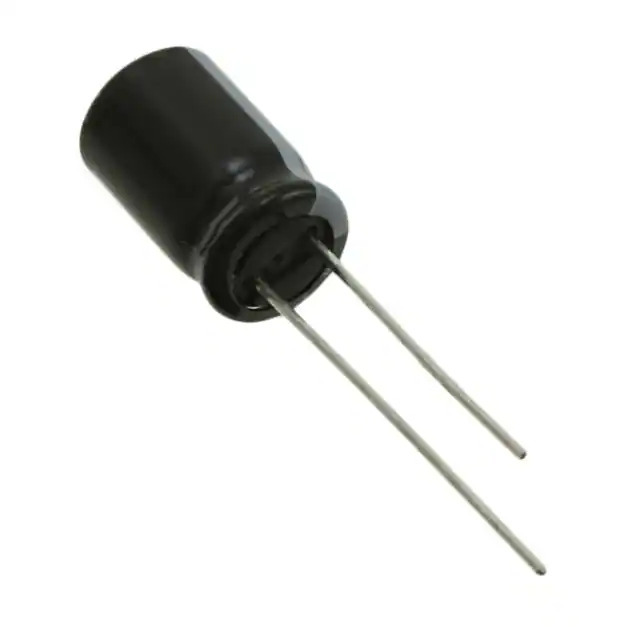

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXG
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 320 mA @ 120 Hz
Ripple Current @ High Frequency 640 mA @ 100 kHz
Impedance 130 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358046-25YXG220MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 25YXG220MEFC8X11.5 CAD Model

Description

The Rubycon 1358046-25YXG220MEFC8X11.5 is an aluminum electrolytic capacitor with a capacitance of 220 μF and a voltage rating of 25 V.

  • Series: YXG
  • Applications: General-Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 4000 hours @ 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Capacitance Tolerance: ±20%
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 320 mA @ 120 Hz
  • Ripple Current (High Frequency): 640 mA @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Impedance: 130 mOhms
  • Product Status: Active
  • REACH: Unaffected
