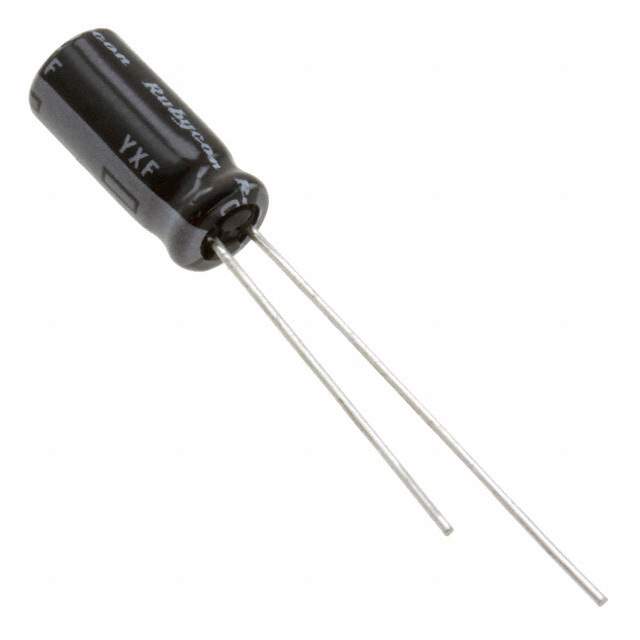

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 25YXF47MEFCT15X11-ND,1189-3723-3,1189-3723-1
Standard Package 2,000
Win Source Part Number 1331383-25YXF47MEFCT15X11
Ultra Librarian 3D Model Ultra Librarian 25YXF47MEFCT15X11 CAD Model

Description

The Rubycon electronic component with Win Source Part Number 1331383-25YXF47MEFCT15X11 is an aluminum electrolytic capacitor in the capacitors category.

  • Manufacturer: Rubycon
  • Win Source Part Number: 1331383-25YXF47MEFCT15X11
  • Packaging: Cut Tape (CT) and Tape and Box (TB)
  • Standard Package: 2,000
  • Size/Dimension: 0.197" Dia (5.00mm)
  • Application: General Purpose
  • Height-Seated (Max): 0.492" (12.50mm)
  • Mounting: Through Hole
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Voltage Rated: 25V
  • Lead Spacing: 0.098" (2.50mm)
  • Impedance: 900 mOhms
  • ESR (Equivalent Series Resistance): Not Applicable
  • Lifetime @ Temperature: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Temperature Range for Operating: -40°C to 105°C
  • Case/Package: Radial, Can
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.22.0020
