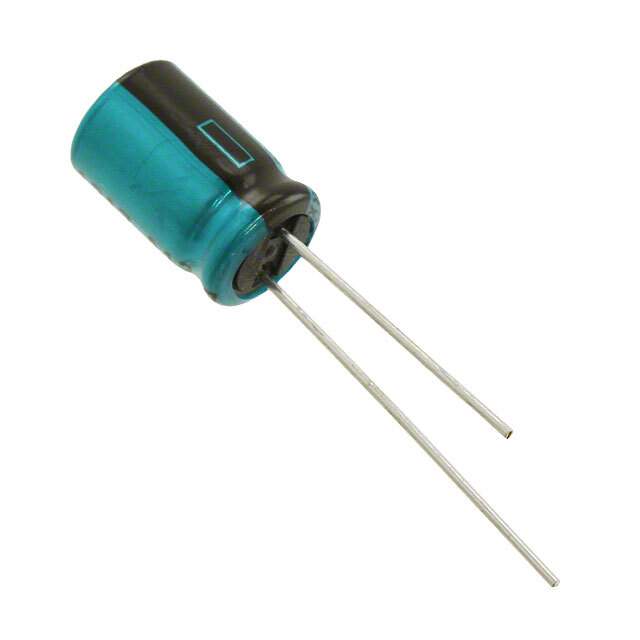

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 252 mA @ 120 Hz
Ripple Current @ High Frequency 360 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.531" (13.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 25RX30220M8X115,1189-1230
Standard Package 2,000
Win Source Part Number 998400-25RX30220M8X11.5
Ultra Librarian 3D Model Ultra Librarian 25RX30220M8X11.5 CAD Model

Description

The Rubycon RX30 998400-25RX30220M8X11.5 is an aluminum electrolytic capacitor that is designed for use in automotive applications.

  • Capacitance: 220 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Height: 0.531 inches
  • Lead Spacing: 0.138 inches
  • Mounting Type: Through-hole
  • Package: Radial, can
  • Ripple Current: 252 mA @ 120 Hz
  • Ripple Current: 360 mA @ 100 kHz
  • Application: Automotive applications
