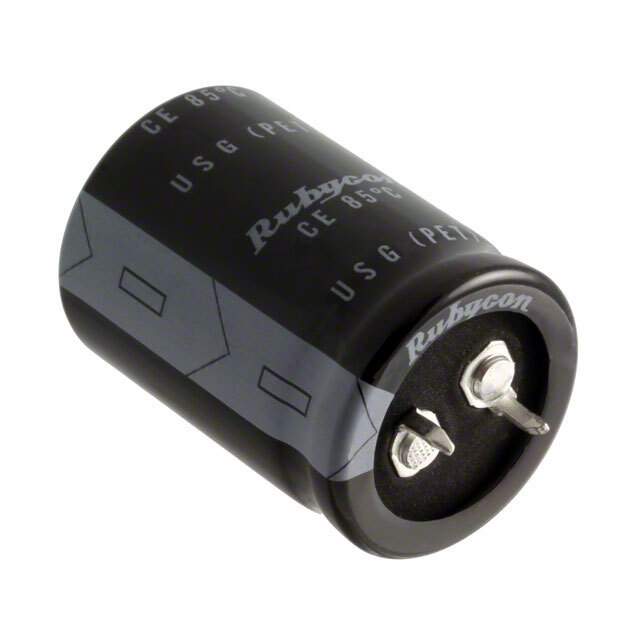

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series USG
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.25 A @ 120 Hz
Ripple Current @ High Frequency 4.875 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1338634-200USG1000MEFCSN25X35
Ultra Librarian 3D Model Ultra Librarian 200USG1000MEFCSN25X35 CAD Model

Description

The Rubycon 1338634-200USG1000MEFCSN25X35 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 1000 µF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • ESR: Not Specified
  • Polarization: Polarized
  • Package: Radial, Can - Snap-In
  • Height: 1.457" (37.00mm) Max
  • Diameter: 0.984" (25.00mm)
  • Temperature Range: -40°C ~ 85°C
  • Lifetime: 3000 Hrs @ 85°C
  • Ripple Current: 3.25 A @ 120 Hz, 4.875 A @ 10 kHz
