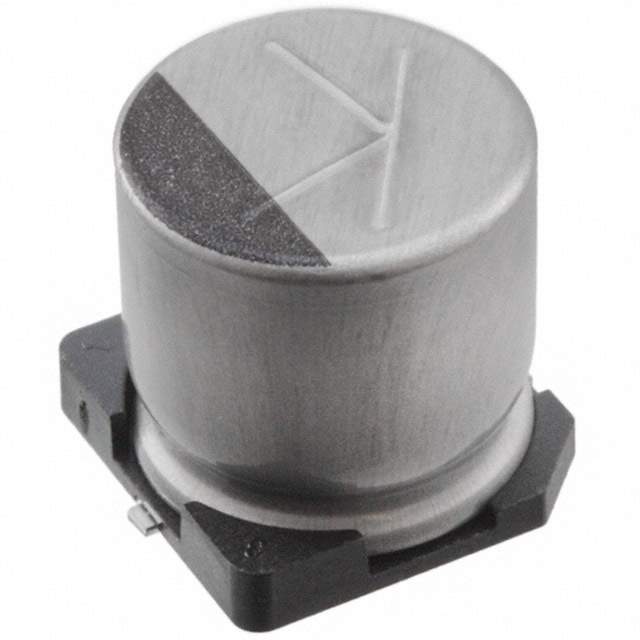

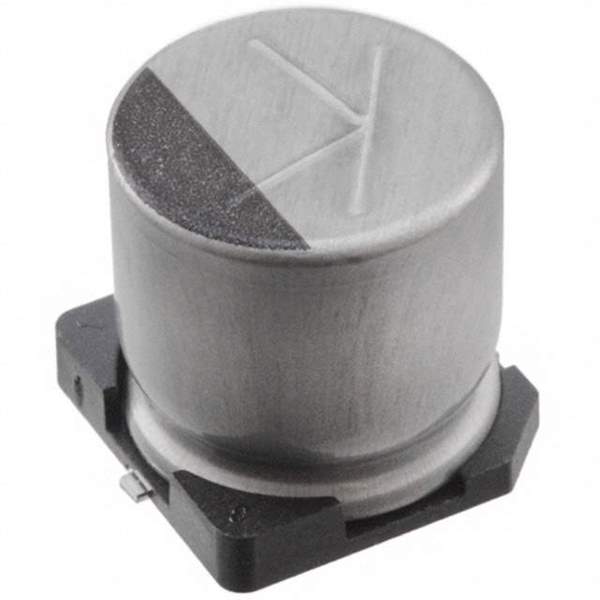

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 16TZV680M10X10.5-ND,1189-2424-6,1189-2424-2,1189-2424-1
Standard Package 500
Win Source Part Number 1129581-16TZV680M10X10.5
Ultra Librarian 3D Model Ultra Librarian 16TZV680M10X10.5 CAD Model

Description

The 1129581-16TZV680M10X10.5 is a high-quality aluminum electrolytic capacitor from Rubycon.

  • Series: TZV series
  • Packaging: tape and reel
  • Application: designed for automotive applications
  • Capacitance: 680 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Impedance: 80 mOhms
  • ESR (Equivalent Series Resistance): not specified
  • Polarized: yes
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Temperature Range: -55°C to 105°C
  • Package: radial, can - SMD
  • Ripple Current @ Low Frequency: 510 mA @ 120 Hz
  • Ripple Current @ High Frequency: 850 mA @ 100 kHz
  • Lifetime: 2000 hours @ 105°C
