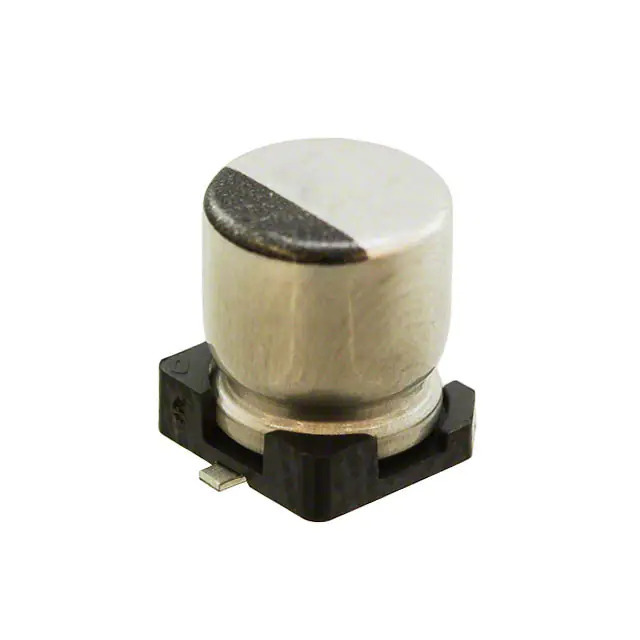

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 28.8 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Impedance 1.35 Ohms
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360336-16TZV10M4X6.1
Ultra Librarian 3D Model Ultra Librarian 16TZV10M4X6.1 CAD Model

Description

The Rubycon 1360336-16TZV10M4X6.1 is an aluminum electrolytic capacitor designed for automotive applications.

  • Manufacturer: Rubycon
  • Capacitance: 10 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Series: TZV
  • Application: Automotive
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Package/Case: Radial, Can - SMD
  • Diameter: 4.00mm
  • Seated Height: 6.10mm
  • Ripple Current (Low Frequency): 28.8 mA @ 120 Hz
  • Ripple Current (High Frequency): 90 mA @ 100 kHz
  • Surface Mount Land Size: 4.30mm x 4.30mm
  • Lifetime: 2000 hours @ 105°C
  • Product Status: Active
  • REACH: Unaffected
  • HTSUS Code: 8532.22.0020
