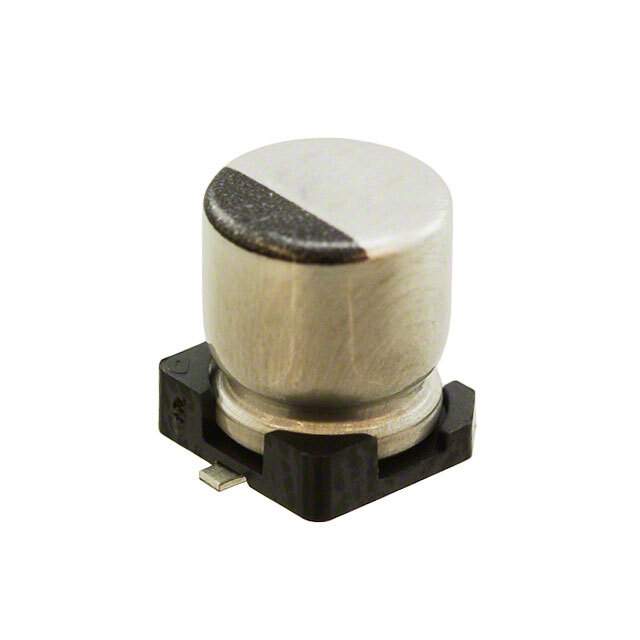

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 125 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 360 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1536-2,1189-1536-6,16TZV100M63X61,1189-1536-1
Standard Package 1,000
Win Source Part Number 1120322-16TZV100M6.3X6.1
Ultra Librarian 3D Model Ultra Librarian 16TZV100M6.3X6.1 CAD Model

Description

The 1120322-16TZV100M6.3X6.1 capacitor from Rubycon is a high-quality aluminum electrolytic capacitor that is designed for use in automotive applications.

  • Capacitance: 100 µF
  • Voltage Rating: 16V
  • Series: TZV
  • AEC-Q200: Rated
  • Tolerance: ±20%
  • Height: 0.240" (6.10mm)
  • Diameter: 0.248" (6.30mm)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Mounting Type: SMD (SMT)
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 360 mOhms
  • ESR (Equivalent Series Resistance): 0
  • Supply and Demand Status: Sufficient
