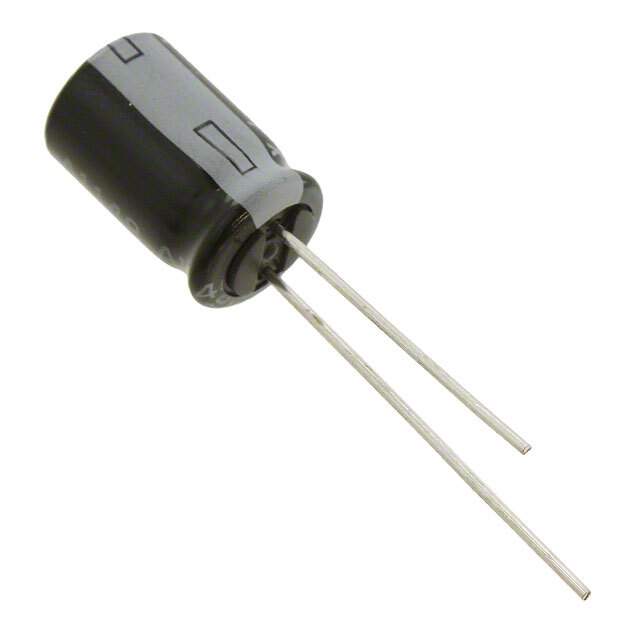

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Tape & Box (TB)
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 375 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 971434-16PX470MEFCT78X11.5
Ultra Librarian 3D Model Ultra Librarian 16PX470MEFCT78X11.5 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor has a capacitance of 470 µF and a voltage rating of 16V.

  • Capacitance: 470 µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Polarization: polarized
  • Ripple Current: 375 mA @ 120 Hz and 450 mA @ 10 kHz
  • Package: radial, can
  • Packaging: tape & box (TB)
  • Height: 0.512" (13.00mm)
  • Dimension: 0.315" Dia (8.00mm)
  • Operating Temperature Range: -55°C ~ 105°C
  • ECCN: EAR99 compliant
