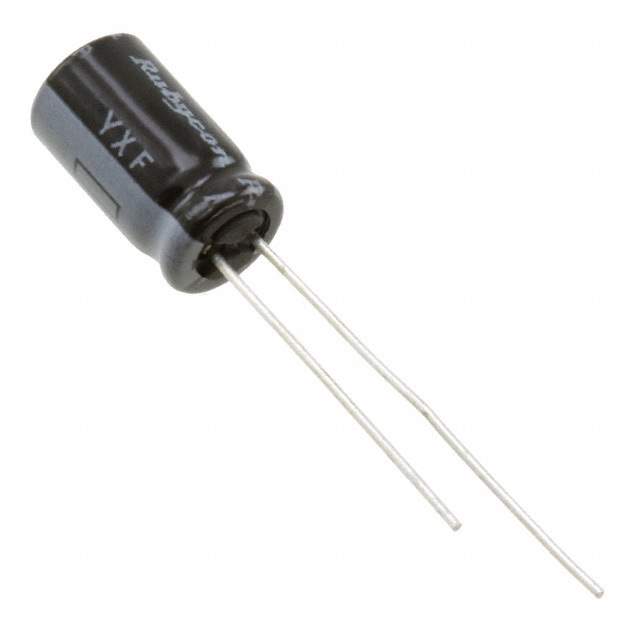

10YXF220MEFC6.3X11 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1874,10YXF220MEFC63X11,10YXF220MEFC6.3X11-ND
Standard Package 2,000
Win Source Part Number 1330193-10YXF220MEFC6.3X11
Ultra Librarian 3D Model Ultra Librarian 10YXF220MEFC6.3X11 CAD Model

Description

The Rubycon 1330193-10YXF220MEFC6.3X11 is a radial, can-type aluminum electrolytic capacitor with a capacitance of 220 µF and a voltage rating of 10 V.

  • Capacitance: 220 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • ESR: -
  • Application: General-Purpose
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Height: 0.492" (12.50mm)
  • Diameter: 0.248" (6.30mm)
  • Lifetime: 4000 hours @ 105°C
  • Packaging: Bulk
  • Series: YXF
  • Manufacturer: Rubycon
  • RoHS Compliance: ROHS3 Compliant
  • Ripple Current: 175 mA @ 120 Hz and 250 mA @ 100 kHz
