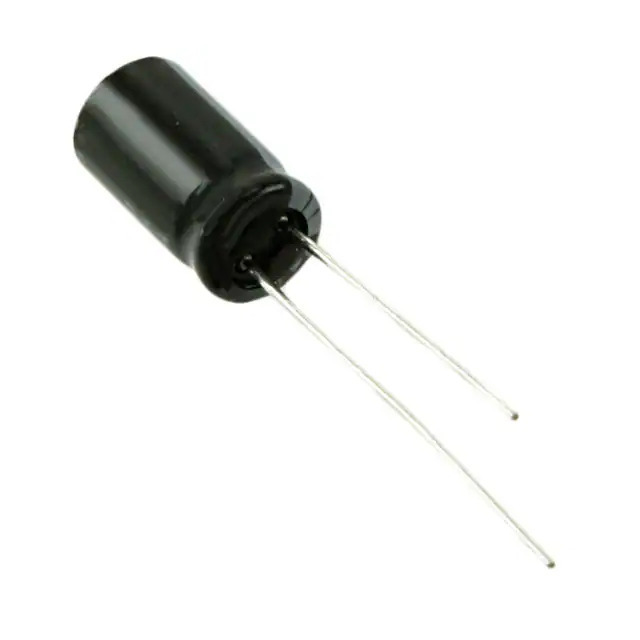

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 235 mA @ 120 Hz
Ripple Current @ High Frequency 282 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357615-10PX330MEFC6.3X11
Ultra Librarian 3D Model Ultra Librarian 10PX330MEFC6.3X11 CAD Model

Description

The Rubycon PX series aluminum electrolytic capacitor is a general-purpose capacitor suitable for a wide range of applications.

  • Capacitance: 330 μF
  • Voltage Rating: 10 V
  • Operating Temperature: -55°C ~ 105°C
  • Mounting Type: Through Hole
  • Size / Dimension: 0.248" Dia
  • Height - Seated (Max): 0.492"
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
  • Series: PX
