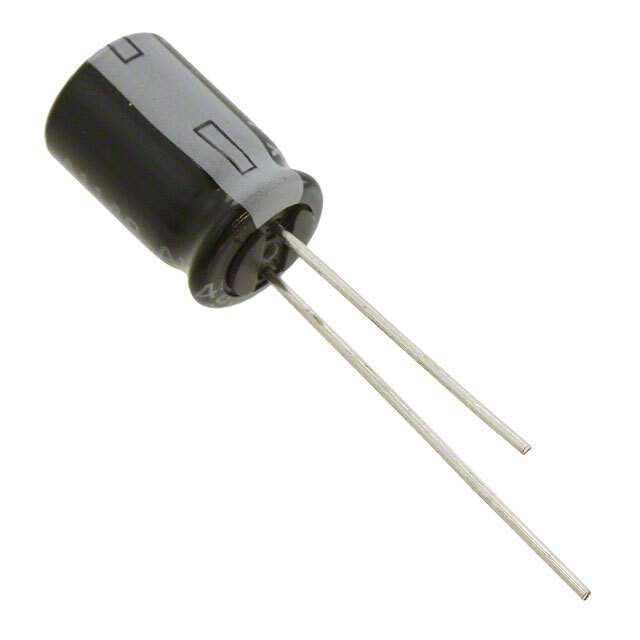

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 500 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 10PX1000MEFC8X115,1189-1053
Standard Package 2,000
Win Source Part Number 1330523-10PX1000MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 10PX1000MEFC8X11.5 CAD Model

Description

The Rubycon 10PX1000MEFC8X11.5 is an aluminum electrolytic capacitor that comes in a radial, can case/package manufactured by Rubycon.

  • Capacitance: 1000 µF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • ESR: Not Specified
  • Polarization: Polarized
  • Temperature Range: -55°C to 105°C
  • Packaging: Bulk
  • Standard Package: 2,000
  • Height: 0.512" (13.00mm)
  • Lead Spacing: 0.138" (3.50mm)
