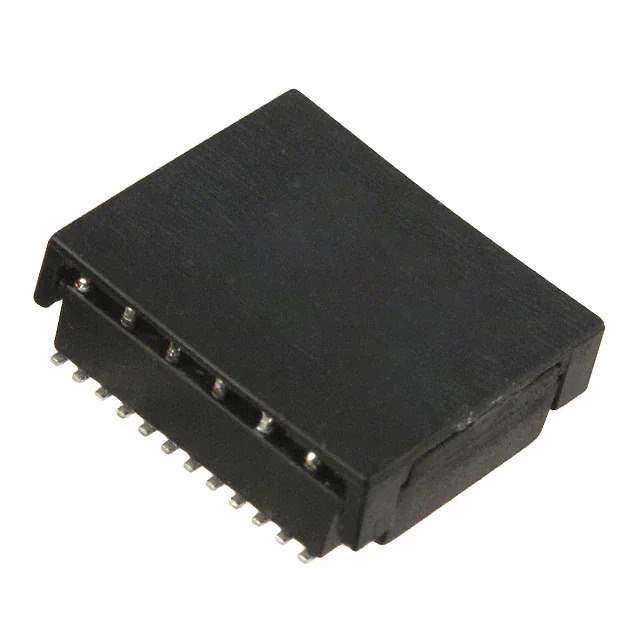

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.550" L x 0.495" W (13.97mm x 12.57mm)
Height - Seated (Max) 0.190" (4.82mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.04 oz (1.14 g)
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873165-H5077NL
Ultra Librarian 3D Model Ultra Librarian H5077NL CAD Model

Description

The 873165-H5077NL is an encapsulated pulse transformer designed for isolation and data interface.

  • Category: Transformers - Pulse Transformers
  • Package: Tube
  • Size/Dimension: 0.550" L x 0.495" W (13.97mm x 12.57mm)
  • Height (Seated): 0.190" (4.82mm)
  • Standard Package: 35 pieces
  • Weight: 0.04 oz (1.14 g)
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C to 70°C
  • MSL Level: 1 (unlimited)
  • REACH: Not affected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
  • Product Status: Active
