Same model may have multiple batches, images only for reference.

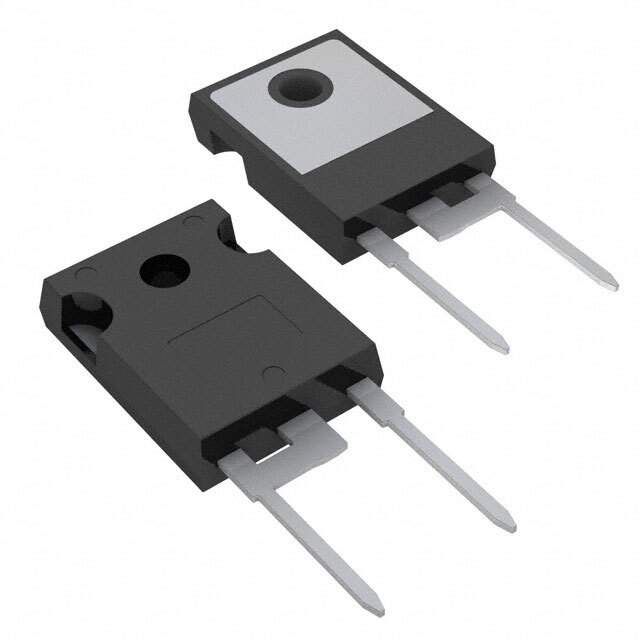

30EPH06PBF Real Image
Same model may have multiple batches, images only for reference.

30EPH06PBF

Part No 30EPH06PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 30A TO247AC
Datasheet
30EPH06PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.6V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole
Case / Package TO-247AC Modified
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 075686-30EPH06PBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management, Automotive
Ultra Librarian 3D Model Ultra Librarian 30EPH06PBF CAD Model

Description

Product Overview

The 30EPH06PBF diode offers exceptional voltage and current handling capabilities, making it an indispensable component in high-performance electronics and power management systems.

Applications

  • LED lighting systems
  • Telecommunication power supplies
  • Automotive electronics
  • Power factor correction circuits

Features and Benefits

  • Minimal power loss
  • High efficiency under load
  • Built-in safeguards against voltage spikes
  • Environmentally friendly design

Additional Details: Manufactured to meet stringent industry standards, the 30EPH06PBF ensures exceptional service life and performance reliability.
