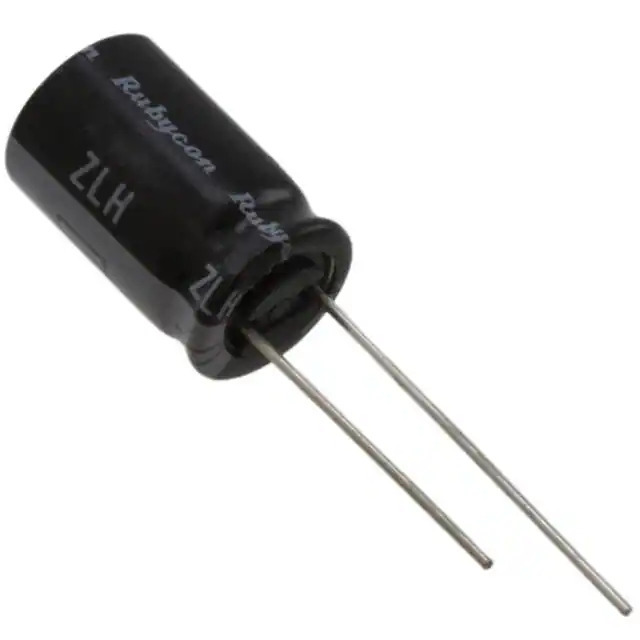

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 390 mA @ 120 Hz
Ripple Current @ High Frequency 780 mA @ 100 kHz
Impedance 170 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357610-100ZLH82MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 100ZLH82MEFC10X16 CAD Model

Description

The ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications from Rubycon.

  • Capacitance: 82 µF
  • Voltage - Rated: 100 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 390 mA @ 120 Hz
  • Ripple Current @ High Frequency: 780 mA @ 100 kHz
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Polarization: Polarized
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" (10.00mm) Dia
  • Height - Seated (Max): 0.689" (17.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
