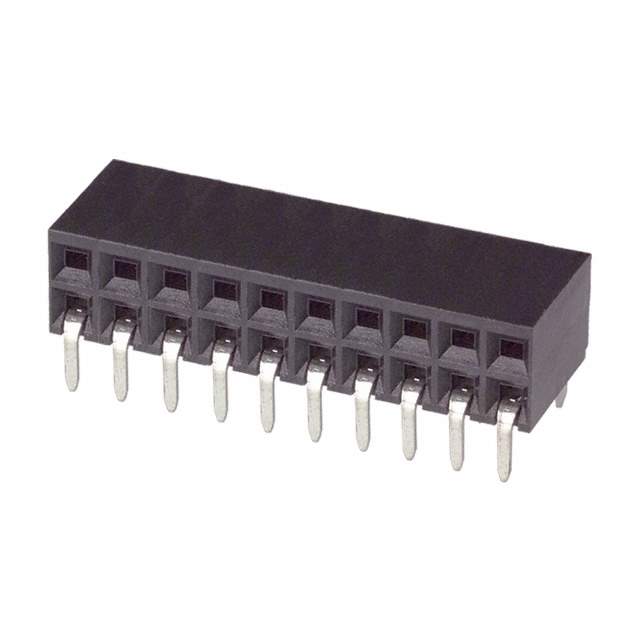

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Insulation Color Black
Insulation Height 0.238" (6.05mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin-Lead
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 50.0μin (1.27μm)
Manufacturer Pack Quantity 880
MSL Level 1 (Unlimited)
Win Source Part Number 1129158-535512-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 535512-2 CAD Model

Description

TE Connectivity AMP Connectors offers a 20-position right-angle receptacle connector with female socket contact type, through-hole mounting style, and push-pull fastening type manufactured by TE Connectivity AMP Connectors.

  • Number of Positions: 20
  • Mounting Style: Through-Hole
  • Fastening Type: Push-Pull
  • Number of Rows: Two
  • Positions Loaded: All
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin-Lead
  • Voltage Rating: Not Specified
  • Insulation Material: Polyester, Glass-Filled
  • Insulation Color: Black
  • Insulation Height: 0.238" (6.05mm)
  • Contact Shape: Square
  • Temperature Range: -55°C ~ 125°C
  • Material Flammability Rating: UL94 V-0
  • Manufacturer's Homepage: www.macom.com
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 880
  • MSL Level: 1 (Unlimited)
  • Current Rating: 2A
