Same model may have multiple batches, images only for reference.

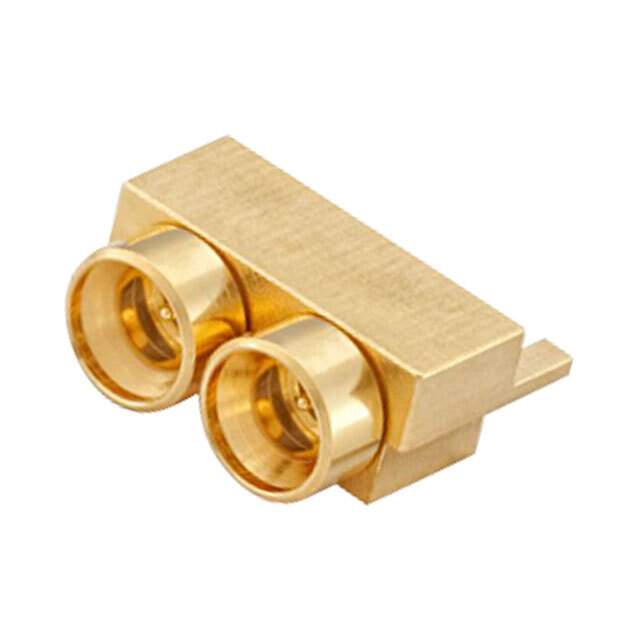

18S20G-40ML5 Real Image
Same model may have multiple batches, images only for reference.

18S20G-40ML5

Part No 18S20G-40ML5
Manufacturer Rosenberger Hochfrequenztechnik GmbH & Co. KG
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMP MINI PLG STR 50OHM EDGE / SMP, Mini Connector Plug, Male Pin 50Ohm Board Edge, Cutout; Surface Mount Solder
Datasheet
18S20G-40ML5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Rosenberger
Connector Style SMP, Mini
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Board Edge, Cutout; Surface Mount
Fastening Type Snap-On
Frequency - Max 65 GHz
Number of Ports 2
Features Full Detent
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyetheretherketone (PEEK)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 325 V
Mating Cycles 100
Base Product Number 18S20G
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1868-1084
Standard Package 100
Win Source Part Number 1331973-18S20G-40ML5
Ultra Librarian 3D Model Ultra Librarian 18S20G-40ML5 CAD Model

Description

The Rosenberger 18S20G-40ML5 is a coaxial connector assembly designed for use in various electronic circuits.

  • Connector Type: Plug, male pin
  • Fastening Type: Snap-on
  • Impedance: 50Ohm
  • Voltage Rating: 325V
  • Frequency Range: Up to 65 GHz
  • Housing Color: Gold
  • Ports: 2
  • Standard Package: 100 pieces
  • Mounting: Board edge, cutout or surface mount
  • Feature: Full detent
  • ROHS Compliant: Yes
  • Temperature Range: -55°C to 155°C
  • Base Product Number: 18S20G
