Same model may have multiple batches, images only for reference.

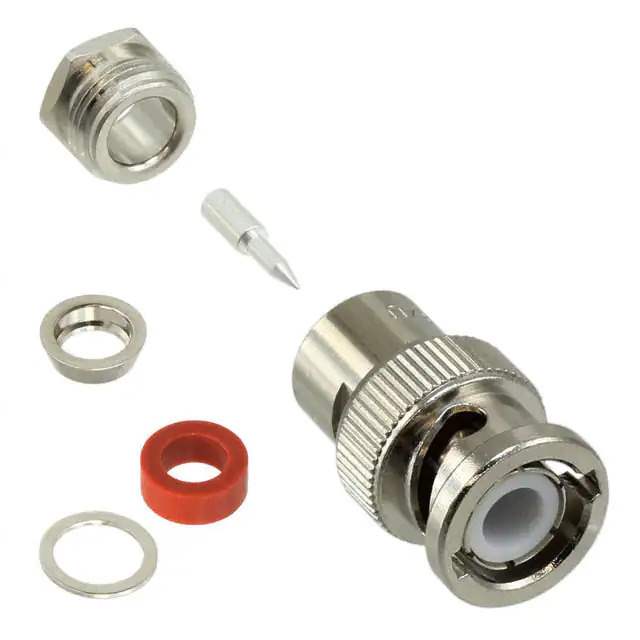

31-2 Real Image
Same model may have multiple batches, images only for reference.

31-2

Part No 31-2
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC PLUG STR 50 OHM SOLDER / BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Solder
Datasheet
31-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Clamp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line)
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 31-2
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 931946-31-2
Ultra Librarian 3D Model Ultra Librarian 31-2 CAD Model

Description

The 931946-31-2 is a BNC Coaxial Connector Assembly designed for use in electronic systems that require RF signal transmission.

  • Connector Type: Plug
  • Pin Gender: Male
  • Fastening Type: Bayonet Lock
  • Material: Brass with Nickel Finish
  • Center Contact Material: Brass with Silver Plating
  • Impedance: 50Ohm
  • Voltage Rating: 500V
  • Maximum Frequency: 4GHz
  • Cable Compatibility: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907 cables
  • Insertion Loss: 0.2dB
  • Package: Bulk
  • Package Quantity: 6 pieces
  • Temperature Range: -65°C to 165°C
