Same model may have multiple batches, images only for reference.

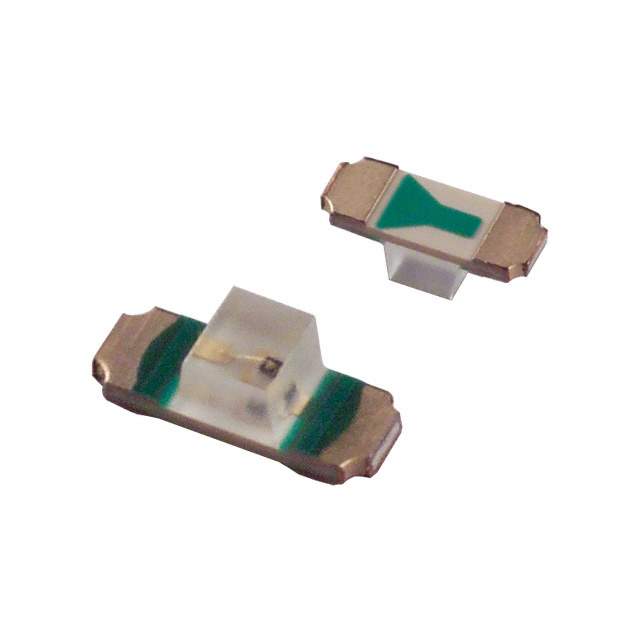

SML813WBC8W1 Real Image
Same model may have multiple batches, images only for reference.

SML813WBC8W1

Part No SML813WBC8W1
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED COOL WHITE DIFFUSED 3412 SMD / White, Cool LED Indication - Discrete 2.9V 1305 (3412 Metric)
Datasheet
SML813WBC8W1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-81
Package Tape & Reel
Product Status Obsolete
Color White, Cool
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 45mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.9V
Current - Test 5mA
Mounting SMD (SMT)
Package / Case 1305 (3412 Metric)
Supplier Device Package 3412(1305)
Dimension 3.40mm L x 1.25mm W
Height (Max) 1.15mm
Base Product Number SML813
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names S9L813WBC8W1AP,846-1096-6,SML813WBC8W1FQ,SML813WBC8W1HR,SML813WBC8W1FR,846-1096-1,846-1096-2
Standard Package 3,000
Win Source Part Number 1137070-SML813WBC8W1
Ultra Librarian 3D Model Ultra Librarian SML813WBC8W1 CAD Model

Description

The SML813WBC8W1 is a white, cool LED indication from Rohm Semiconductor.

  • Color: White, Cool
  • Voltage Forward: 2.9V
  • Current Test: 5mA
  • Millicandela Rating: 45mcd
  • Dimension: 3.40mm L x 1.25mm W
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.20mm x 1.25mm
  • Packaging: Tape & Reel
  • Standard Package: 3,000
  • Maximum Height: 1.15mm
  • Mounting Style: SMD (SMT)
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
