Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) at If 1.55V at 20A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 400μA at 600V
Capacitance at Vr, F 730pF at 1V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247
Operating Temperature - Junction 175°C (Maximum)
Part Number Series SCS220
Manufacturer Pack Quantity 360
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813650-SCS220AEC
Ultra Librarian 3D Model Ultra Librarian SCS220AEC CAD Model

Description

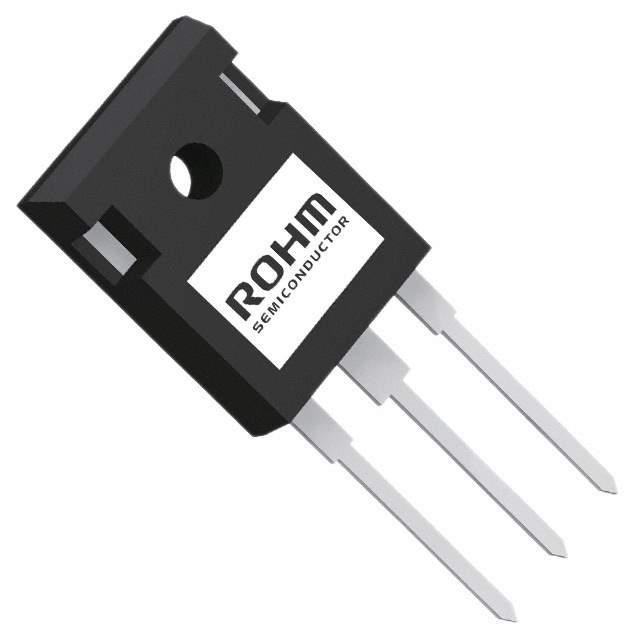

The SCS220AEC is a silicon carbide Schottky diode from Rohm Semiconductor.

  • Maximum Reverse Voltage: 650V
  • Maximum Forward Voltage: 1.55V @ 20A
  • Current Average Rectified: 20A
  • Package: TO-247
  • Reverse Recovery Time: Less than 500mA
  • Reverse Leakage Current: 400μA @ 600V
  • Capacitance: 730pF @ 1V, 1MHz
  • Manufacturer Pack Quantity: 360
  • Supply and Demand Status: Limited
  • Popularity: Low
