Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 650V
Current - Average Rectified (Io) 10A (DC)
Voltage - Forward (Vf) (Maximum) at If 1.55V at 10A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage at Vr 200μA at 600V
Capacitance at Vr, F 365pF at 1V, 1MHz
Mounting Style Through Hole
Manufacturer Package TO-220-2
Supplier Device Package TO-220FM
Operating Temperature - Junction 175°C (Maximum)
Part Number Series SCS210
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808312-SCS210AMC
Ultra Librarian 3D Model Ultra Librarian SCS210AMC CAD Model

Description

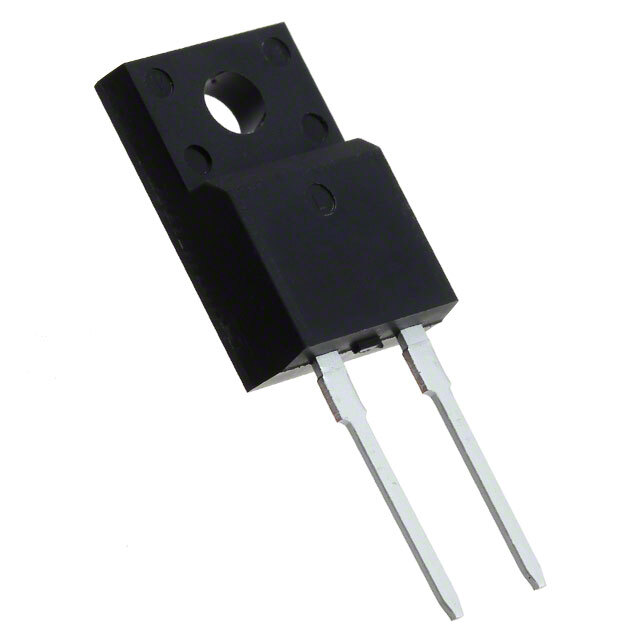

The Rohm Semiconductor SCS210AMC is a silicon carbide Schottky diode with a reverse recovery time (trr) of 0ns and a current-average rectified (Io) of 10A (DC).

  • Supplier Device Package: TO-220FM
  • Voltage-DC Reverse (Vr) (maximum): 650V
  • Supply and Demand Status: Balance
  • Manufacturer Package: TO-220-2
  • Voltage-Forward (Vf) (maximum) @ If: 1.55V @ 10A
