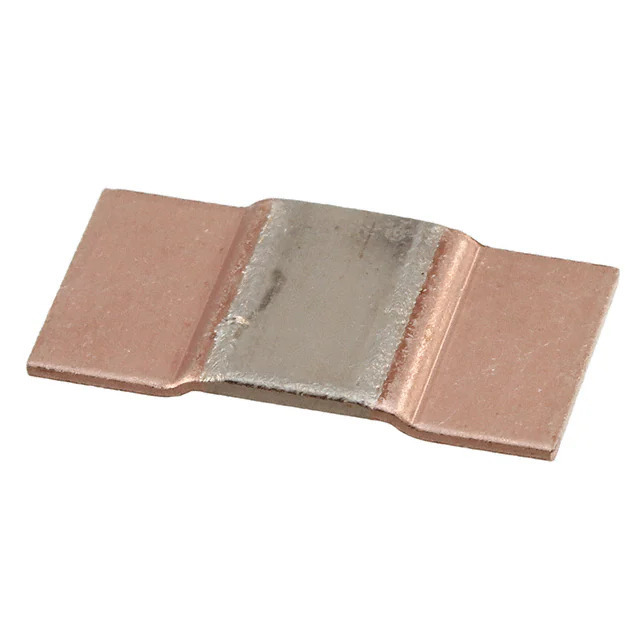

PSR500HTQFD0L30 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

PSR500HTQFD0L30

Part No PSR500HTQFD0L30
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 300 UOHM 1% 5W 5931 / 0.3 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense Metal Element
Datasheet
PSR500HTQFD0L30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series PSR
Package Tape & Reel
Product Status Active
Resistance 0.3 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 5931
Ratings AEC-Q200
Size / Dimension 0.591" L x 0.305" W (15.00mm x 7.75mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1355548-PSR500HTQFD0L30
Ultra Librarian 3D Model Ultra Librarian PSR500HTQFD0L30 CAD Model

Description

The PSR500HTQFD0L30 is a chip resistor from Rohm Semiconductor.

  • Series: PSR
  • Package: Nonstandard
  • Temperature Range: -55°C to 170°C
  • Resistance: 0.3 mOhms
  • Power Rating: 5W
  • Tolerance: ±1%
  • Automotive Application: Yes
  • Current Sensing: Yes
