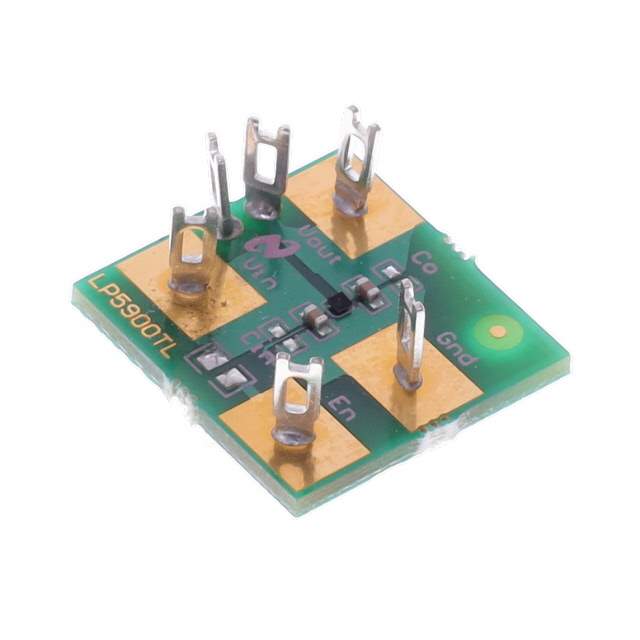

LP5900TL-2.6EV

Part No LP5900TL-2.6EV
Manufacturer Texas Instruments
Catalog Evaluation Boards - Linear Voltage Regulators
Description BOARD EVALUATION LP5900TL-2.6 / LP5900 Linear Regulator 2.6VDC Output Evaluation Board
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Channels per IC 1 - Single
Voltage - Output 2.6V
Output Current 150mA
Voltage - Input 2.5 V ~ 5.5 V
Regulator Type Positive Fixed
Operating Temperature Range -40°C ~ 125°C
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LP5900
Win Source Part Number 779901-LP5900TL-2.6EV
Popularity Medium
Supply and Demand Status Limited
Family Name LP5900
Introduction Date July 01, 2005
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LP5900TL-2.6EV CAD Model

Description

The LP5900TL-2.6EV is a high-performance, low-noise LDO (Low Dropout Regulator) designed and manufactured by Texas Instruments. This voltage regulator is specifically engineered to deliver a stable and clean power supply to sensitive electronic components. Featuring an output voltage of 2.6V, the LP5900TL-2.6EV is ideal for applications that require precise voltage regulation with minimal power loss.

Key Features

  • Low Dropout: The LP5900TL-2.6EV boasts an ultra-low dropout, making it efficient for systems with minimal voltage differences between input and output.
  • High Accuracy: With an output voltage accuracy of ±1%, this LDO ensures reliable and consistent performance for critical applications.
  • Low Noise: It produces a low output noise of 6.5µVRMS, providing a clean power supply that is ideal for RF and analog circuits.
  • Stable with Ceramic Capacitors: The device is stable with ceramic output capacitors, ensuring a stable operation with cost-effective and compact capacitors.
  • Power-Saving Mode: It features a power-save mode that reduces quiescent current during light load conditions, enhancing battery life in portable applications.
  • Thermal Protection: The LP5900TL-2.6EV includes thermal shutdown protection to prevent damage from overheating.

Applications

The LP5900TL-2.6EV is versatile and can be used in a wide range of applications, including:

  • Mobile Phones
  • Portable Media Players
  • Wireless LAN Cards
  • Handheld Instruments
  • GPS Devices

Product Specifications

Parameter Value
Output Voltage (V) 2.6
Output Current (A) 0.15
Dropout Voltage (mV) 250 at 150mA
Noise (µVRMS) 6.5
Quiescent Current (µA) 25

With its combination of features, the LP5900TL-2.6EV is an excellent choice for designers looking for a high-quality voltage regulator that can ensure the integrity of their sensitive electronic systems.
