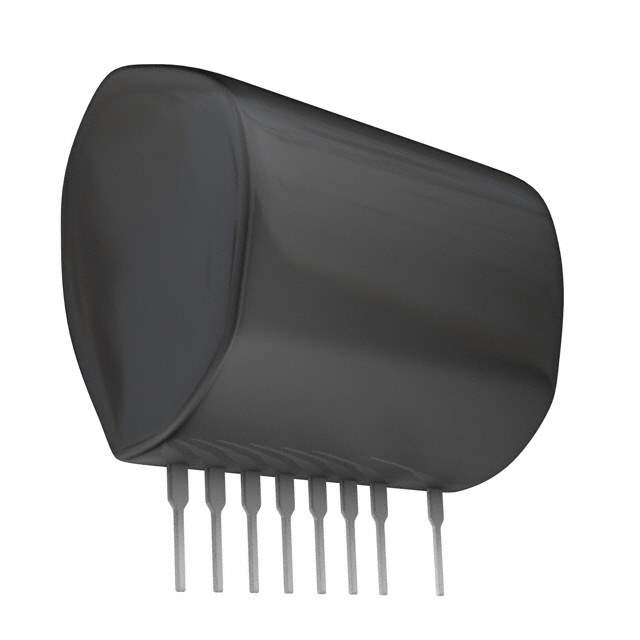

BP5801 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Tray
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Low Side
Interface Analog, PWM
Technology Bipolar
Applications General
Output Current 400mA
Operating Supply Voltage 12 V ~ 15 V
Voltage - Load 11 V ~ 13 V
Operating Temperature Range -10°C ~ 60°C (TA)
Mounting Style Through Hole
Package 9-SIP, 8 Leads
Manufacturer Package 9-SIP
Win Source Part Number 1153947-BP5801
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BP5801
Introduction Date January 18, 2001
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian BP5801 CAD Model

Description

The Rohm Semiconductor BP5801 is a fully integrated driver with a control and power stage.

  • Operating Supply Voltage: 12 V ~ 15 V
  • Load Voltage: 11 V ~ 13 V
  • Package: 9-SIP, 8 leads
  • Step Resolution: -
  • Motor Type: Brushed DC
  • Applications: General
  • ECCN: EAR99 compliant
  • Estimated EOL date: Not Applicable
  • Supply and Demand Status: Limited
