Same model may have multiple batches, images only for reference.

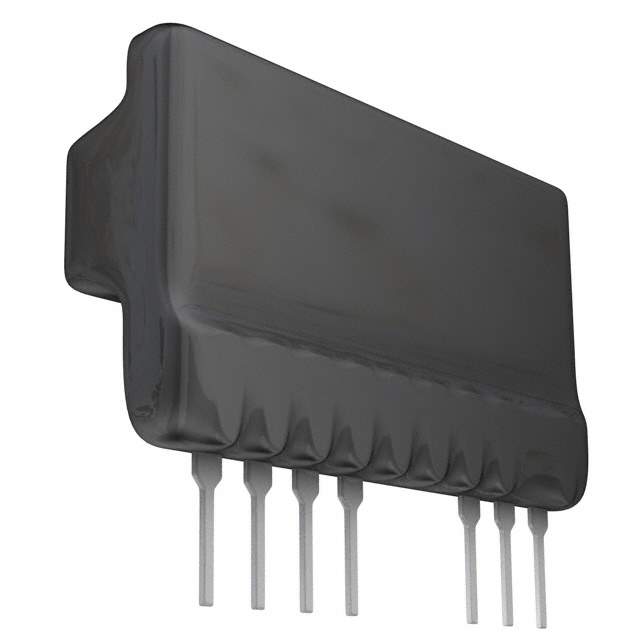

BP5250-24 Real Image
Same model may have multiple batches, images only for reference.

BP5250-24

Part No BP5250-24
Manufacturer Rohm Semiconductor
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Non-Isolated PoL Module DC DC Converter 1 Output 5V 2A 20V - 27V Input
Datasheet
BP5250-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Rohm Semiconductor
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 20V
Voltage - Input (Max) 27V
Voltage - Output 1 5V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-SIP Module
Dimension 0.79" L x 0.20" W x 0.51" H (20.0mm x 5.2mm x 13.0mm)
Base Product Number BP5250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 500
Win Source Part Number 1004667-BP5250-24
Ultra Librarian 3D Model Ultra Librarian BP5250-24 CAD Model

Description

The BP5250-24 is a non-isolated PoL module designed for use in ITE applications and is manufactured by Rohm Semiconductor.

  • Package: 7-SIP module
  • Output: Single
  • Maximum Current Output: 2A
  • Voltage Output: 5V
  • Features: Remote on/off and OCP
  • Input Voltage Range: 20V to 27V
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tray
  • Standard Package: 500 units
  • Dimension: 0.79" L x 0.20" W x 0.51" H (20.0mm x 5.2mm x 13.0mm)
