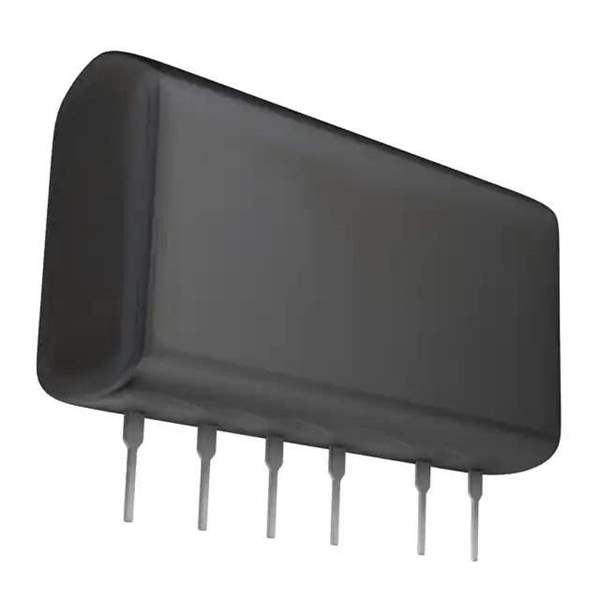

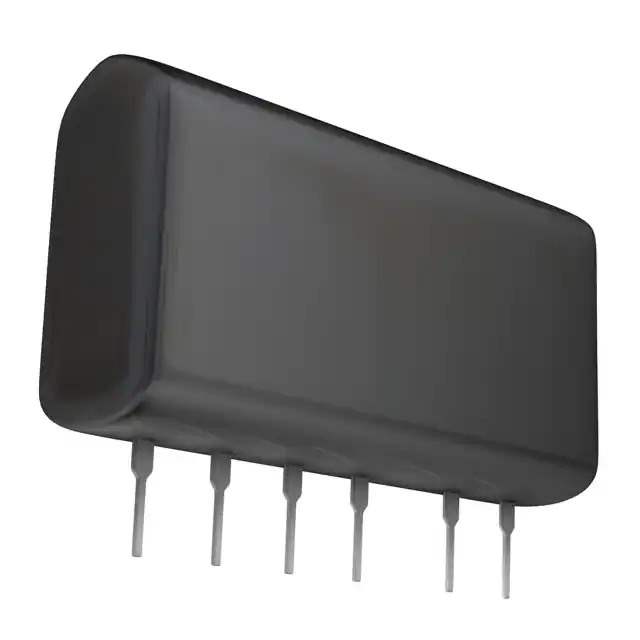

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Rohm Semiconductor
Series BP5061
Package Tray
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 -12V
Current - Output (Max) 300mA
Power (Watts) 4 W
Applications ITE (Commercial)
Temperature Range - Operating -25°C ~ 80°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 12-SIP Module, 6 Leads
Size / Dimension 1.38" L x 0.36" W x 0.77" H (35.0mm x 9.1mm x 19.5mm)
Line Regulation 40mV
Load Regulation 50mV
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 571252-BP5061
Ultra Librarian 3D Model Ultra Librarian BP5061 CAD Model

Description

The 571252-BP5061 is an enclosed AC-DC converter power supply designed for ITE (Commercial) applications. It features a compact size of 1.38" L x 0.36" W x 0.77" H, making it suitable for space-constrained designs. The power output is 4W with a voltage input range of 80V to 120V AC. It has a single output with a voltage of -12V and a maximum output current of 300mA.

  • Efficiency: 78%
  • Package Type: 12-SIP Module with 6 leads
  • Mounting: Through-hole
  • Status: Obsolete
  • Manufacturer: Rohm Semiconductor
