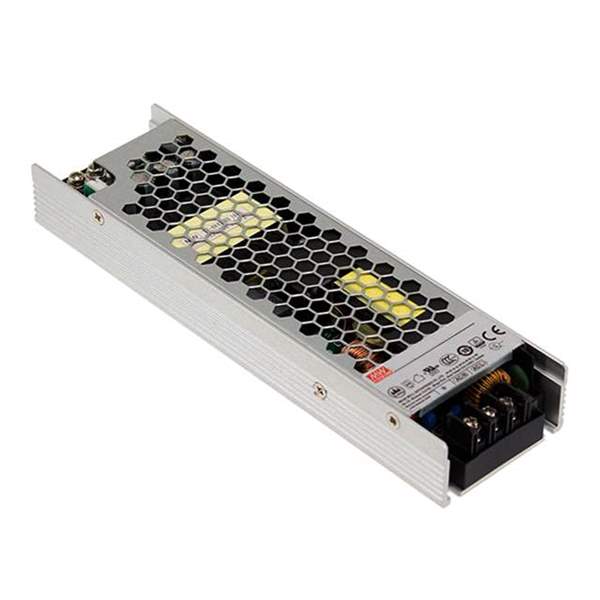

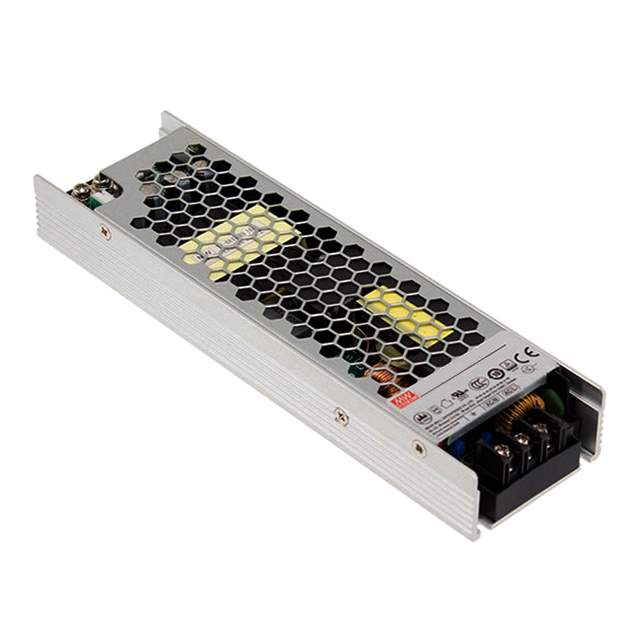

The UHP-200-5 is a 200W single-output slim type power supply manufactured by Mean Well. It is part of the UHP series, known for its high efficiency, compact size, and fanless design, making it suitable for applications where space is limited and silent operation is required. This power supply delivers a stable 5V DC output and is widely used in various industrial and commercial applications.

Applications

• LED lighting
• Industrial automation equipment
• Signage applications
• Test and measurement equipment
• Medical equipment (subject to specific certifications)

Features

• Slim design with a low profile
• Fanless design for silent operation
• High efficiency up to 93%
• Universal AC input range (85~264VAC)
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Operating altitude up to 5000 meters
• DC OK signal

Benefits

• Space-saving design allows for easy integration into compact systems.
• Silent operation makes it suitable for noise-sensitive environments.
• High efficiency reduces energy consumption and heat dissipation.
• Universal AC input simplifies installation in different regions.
• Comprehensive protection features ensure reliable operation and prevent damage to the power supply and connected equipment.

Technical Specifications

The UHP-200-5 operates with a universal AC input voltage range of 85~264VAC. It provides a stable 5V DC output with a maximum current of 40A, delivering a total power output of 200W. The power supply incorporates an active PFC (Power Factor Correction) function to improve power factor and reduce harmonic distortion. Protections include short circuit, overload, over voltage, and over temperature. The operating temperature range is typically -30°C to +70°C. The dimensions are approximately 220mm x 75mm x 26mm, making it a very slim and compact unit. Detailed specifications and safety certifications can be found in the Mean Well datasheet.
