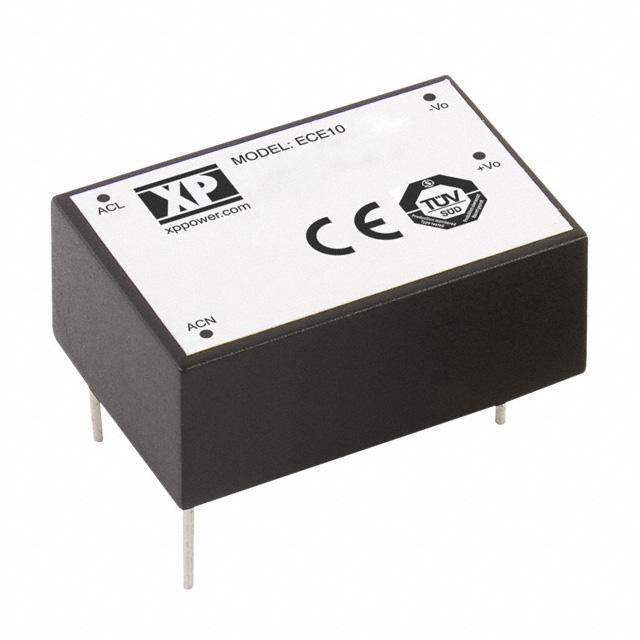

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1197298-ECE10US12
Manufacturer XP Power
Category Power Supplies - Board Mount AC DC Converters
Series ECE (10W)
Package Tube
Product Status Active
Type Enclosed
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Applications ITE (Commercial)
Operating Temperature -25°C ~ 70°C (With Derating)
Efficiency 83%
Ultra Librarian 3D Model Ultra Librarian ECE10US12 CAD Model

Description

The ECE (10W) series by XP Power is an enclosed AC/DC converter. It features a universal input voltage range of 85 ~ 264 VAC and 120 ~ 370 VDC. The ECE (10W) converter has an efficiency of 83% and operates in a temperature range of -25°C to 70°C with derating. It is designed for ITE (Commercial) applications, providing reliable and stable power conversion. With its compact size and universal input capability, the ECE (10W) series is a versatile solution for various electronic devices and systems.
