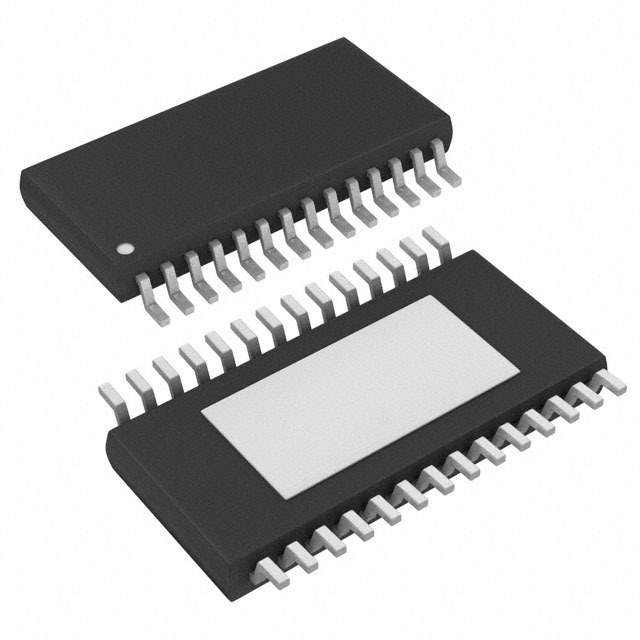

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/8, 1/16
Applications General Purpose
Output Current 700mA
Supply Voltage - Operating 19 V to 28 V
Voltage - Load 19 V to 28 V
Temperature Range - Operating -25°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-HTSSOP-B
Win Source Part Number 011443-BD63843EFV-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BD63843EFV-E2 CAD Model

Description

Overview

The BD63843EFV-E2 is a cutting-edge stepper motor driver designed for superior phase current control, delivering enhanced torque and speed performance. It is particularly suitable for applications where dynamic and responsive motor control is essential.

Applications

  • Vending Machines
  • Medical Diagnostic Equipment
  • Aerospace Controls
  • Precision Cutting Systems

Features and Benefits

  • Phase Current Control: Offers improved torque and speed regulation.
  • Quick Response: Ensures immediate and precise motor responses.
  • Durable Construction: Designed to withstand demanding operational environments.
  • Efficient Power Use: Optimizes energy use to deliver consistent power output.

Additional Details

Providing refined control over motor functions, the BD63843EFV-E2 supports a dynamic array of industrial applications, ensuring precision and reliability in every operation.
