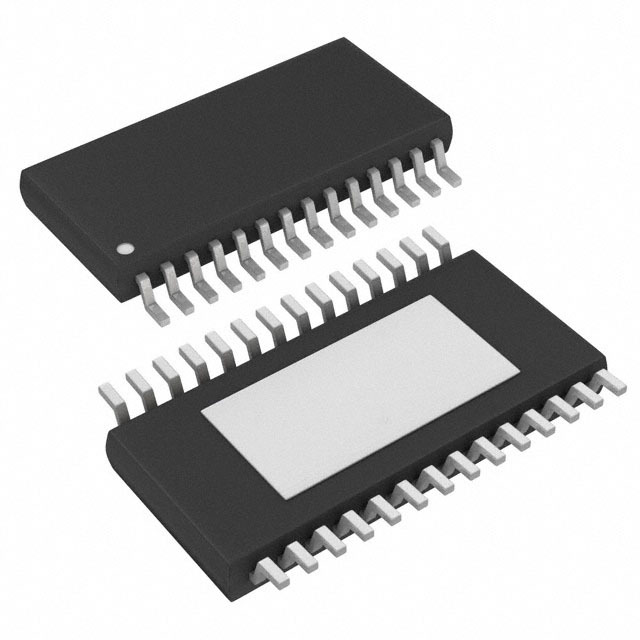

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Series -
Package Tape & Reel
Product Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC -
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface -
Technology DMOS
Step Resolution 1 ~ 1/16
Applications General Purpose
Current - Output 2A
Voltage - Supply 8V ~ 28V
Voltage - Load -
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD63521
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372113-BD63521EFV-E2
Ultra Librarian 3D Model Ultra Librarian BD63521EFV-E2 CAD Model

Description

The BD63521EFV-E2 is a motor driver integrated circuit (IC) manufactured by Rohm Semiconductor.

  • Temperature Range: -25°C to 85°C
  • Package: 28-VSSOP with exposed pad
  • Voltage Supply Range: 8V to 28V
  • Output Configuration: Half-Bridge
  • Maximum Output Current: 2A
  • Motor Type: Bipolar Stepper Motor
