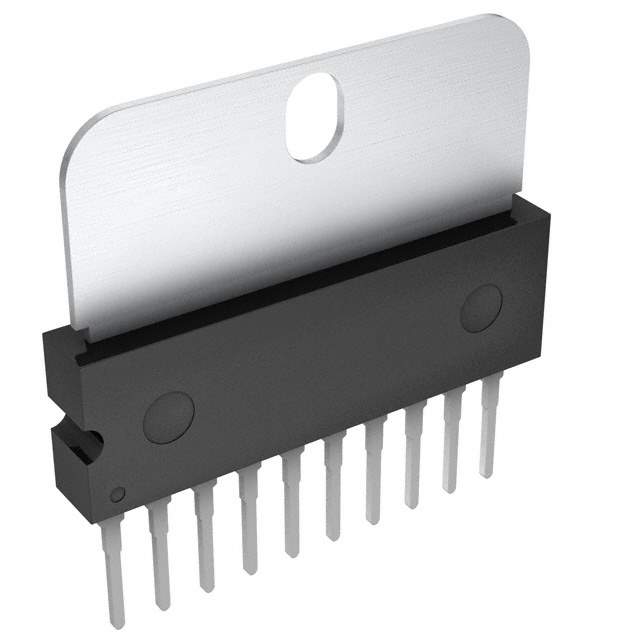

BA6209 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Tube/Rail
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology CMOS
Applications Media Player
Output Current 1.6A
Supply Voltage - Operating 6 V to 18 V
Voltage - Load 6.6 V to 7.2 V
Temperature Range - Operating -20°C to 75°C (TA)
Mounting Through Hole
Case / Package 10-SIP
Win Source Part Number 143160-BA6209
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BA6209 CAD Model

Description

BA6209 Dual Motor Driver

The BA6209 is a versatile dual motor driver IC designed for precision control in a variety of applications. With its capability to deliver a powerful output while maintaining efficient operation, this IC is ideal for use in robotics, automated machinery, and home appliance systems.

Features and Benefits:

  • High efficiency in motor control, reducing energy consumption.
  • Simple interfacing with microcontrollers, enabling easy integration.
  • Overcurrent protection to ensure durability and safety.
  • Compact design for space-constrained projects.

Applications:

  • Robotics
  • Remote-controlled vehicles
  • Automated conveyor systems
  • HVAC systems

The BA6209 delivers steady performance and reliable motor control, making it a trusted component for various electronic projects requiring precision and dependability.
