ON Semiconductor SS13FP Product Overview

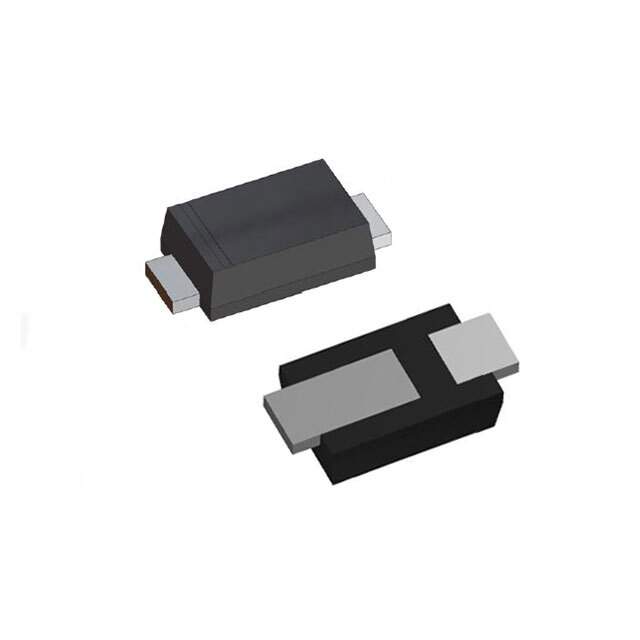

The SS13FP from ON Semiconductor is a high-performance, surface-mount Schottky barrier rectifier designed for applications requiring low voltage drop and high current capability. It is a popular choice for power management in compact electronic devices due to its small footprint and efficient operation.

Key Features

• Low Forward Voltage Drop: The SS13FP offers a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the component and overall system.
• High Current Capability: This rectifier can handle high current loads, making it suitable for power supply applications that require robust current handling.
• Surface-Mount Package: The device comes in a small SMB package, which is ideal for space-constrained applications and facilitates easy integration into surface-mount technology (SMT) manufacturing processes.
• High Surge Capability: It is designed to withstand high surge currents, providing reliable performance under transient conditions.
• RoHS Compliant: The SS13FP adheres to the Restriction of Hazardous Substances (RoHS) directive, ensuring that it is free from environmentally harmful substances.

Applications

The SS13FP is versatile and can be used in a variety of applications, including:

• DC/DC converters
• Power supply units
• Free-wheeling diodes in converters and motor control circuits
• Polarity protection devices
• Portable devices and battery-powered systems

Technical Specifications

With a maximum repetitive peak reverse voltage (V_RRM) of 30 volts and a maximum average forward rectified current (I_AV) of 1 ampere, the SS13FP is a robust choice for many electronic circuits. The operating junction temperature range of -55°C to +125°C ensures stability and reliability across various environmental conditions.

Conclusion

The ON Semiconductor SS13FP Schottky barrier rectifier is an excellent choice for designers looking for a compact, efficient, and reliable component for their power management needs. Its combination of low forward voltage drop, high current capability, and surge robustness makes it a versatile component suitable for a wide range of electronic applications.
